SUBARU Vacuum Diagrams

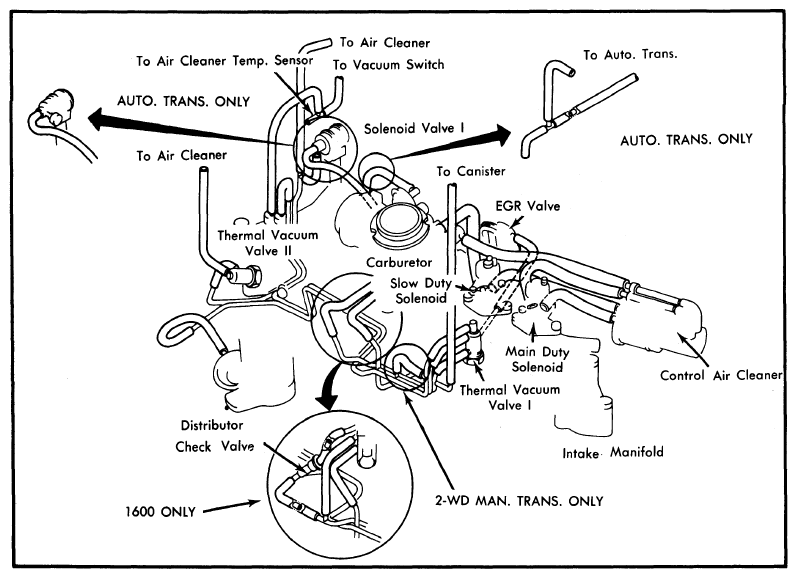

Fig 1: Subaru Vacuum Diagram (All Models)

G09314029

Courtesy of SUBARU OF AMERICA, INC.
