Evaporative Emissions System: Maintenance

Check evaporative emission system for damage or clogged lines, defective valves or carbon canister every 30 months or 30, 000 miles. Repair or replace components as necessary.

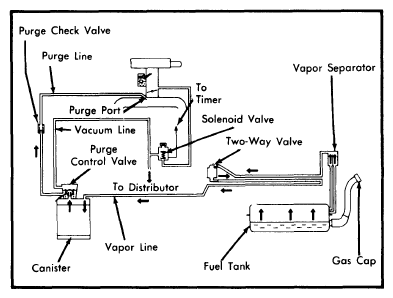

Fig 1: Subaru Evaporative Emission Control for All Federal Models (Exc. Hatchback STD & DL, Sedan DL, and Hardtop DL Models)

Courtesy of SUBARU OF AMERICA, INC.

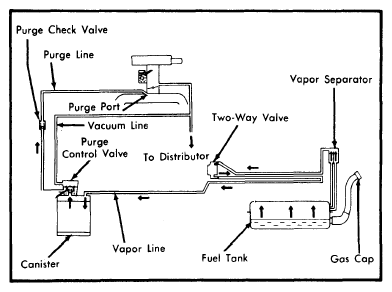

Fig 2: Subaru Evaporative Emission Control for Federal Hatchback STD & DL, Sedan DL, and Hardtop DL Models

Courtesy of SUBARU OF AMERICA, INC.

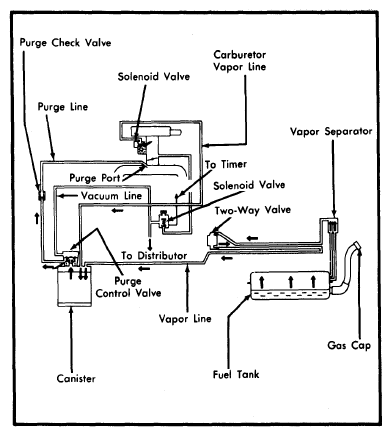

Fig 3: Subaru Evaporative Emission Control for All California Models

Courtesy of SUBARU OF AMERICA, INC.

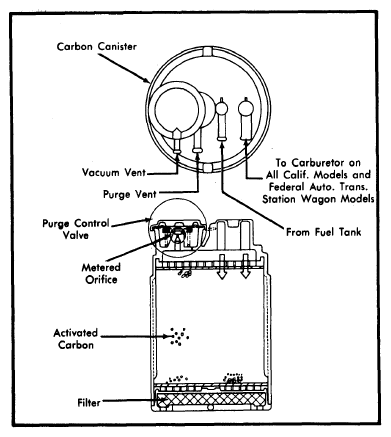

Fig 4: Subaru Carbon Canister for All Models

Courtesy of SUBARU OF AMERICA, INC.
