Anti-AFTERBURN System: Operation

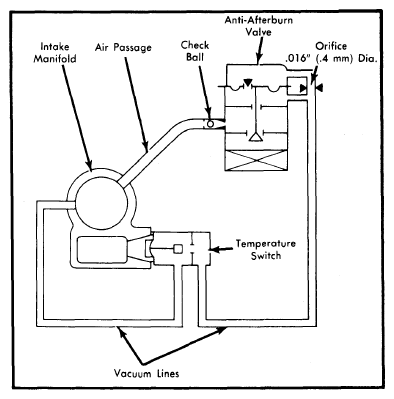

With coolant temperature below 167°F (75°C), the temperature switch is open, allowing vacuum to reach the anti-afterburn valve. With vacuum applied to valve, the anti-afterburn system is activated. With coolant temperature above this value, the temperature switch closes, shutting off vacuum to the anti-afterburn valve and overriding the system.
