Turn Signal Switch

Switch is a combination turn signal, hazard warning, and headlight dimmer assembly. Remove steering wheel as outlined above. Remove the two combination switch retaining screws, then remove the contact plate assembly, washer, cancel cam, combination switch, and spacer from the shaft (in this order). To install, reverse removal procedure.

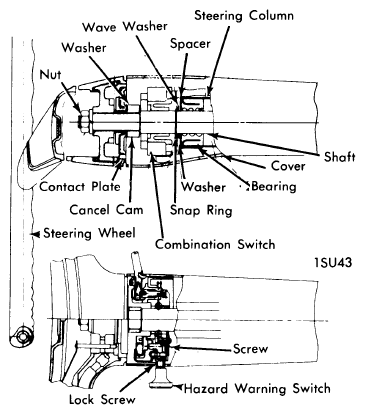

Fig 1: Steering Wheel & Upper Assembly
G09345818Courtesy of SUBARU OF AMERICA, INC.

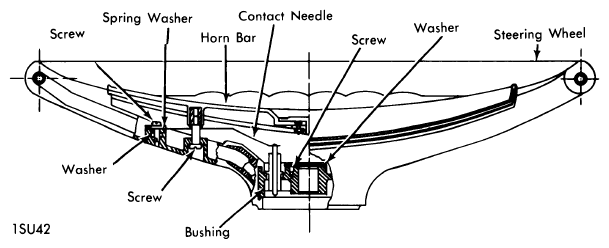

Fig 2: Steering Wheel Assembly
G09345817Courtesy of SUBARU OF AMERICA, INC.
