Removal & Installation: Removal: Notes
- Disconnect battery, then remove horn control, steering wheel, and combination switch. See 1970-71 Subaru STEERING WHEEL REMOVAL Section.
- Remove back-up light switch wires, then remove shift rod cotter pin and washer. Leave shift rod in a condition where it can be removed from steering column. Remove left luggage shelf.
Courtesy of SUBARU OF AMERICA, INC.

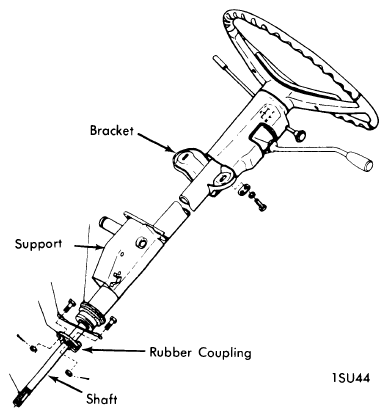

- Remove accelerator pedal and cable from accelerator lever. Disconnect clutch rod from clutch pedal. Remove master cylinder mounting bolts and move master cylinder away from steering column. Remove the two (upper) rubber coupling bolts and separate the shaft side from gear assembly side. Remove the two steering column bolts and pull out steering column assembly from toe-board.
