Rack Adjustment

Using Lock Nut Wrench (07916-SA50001 ), loosen lock nut. Using a 14 mm wrench, tighten rack guide screw until spring is compressed against the guide.
On 825, loosen rack guide screw. Retighten to 24 INCH lbs. (3 N.m). Back off rack guide screw approximately 1/5 turn. Hole rack guide screw in place and tighten lock nut.

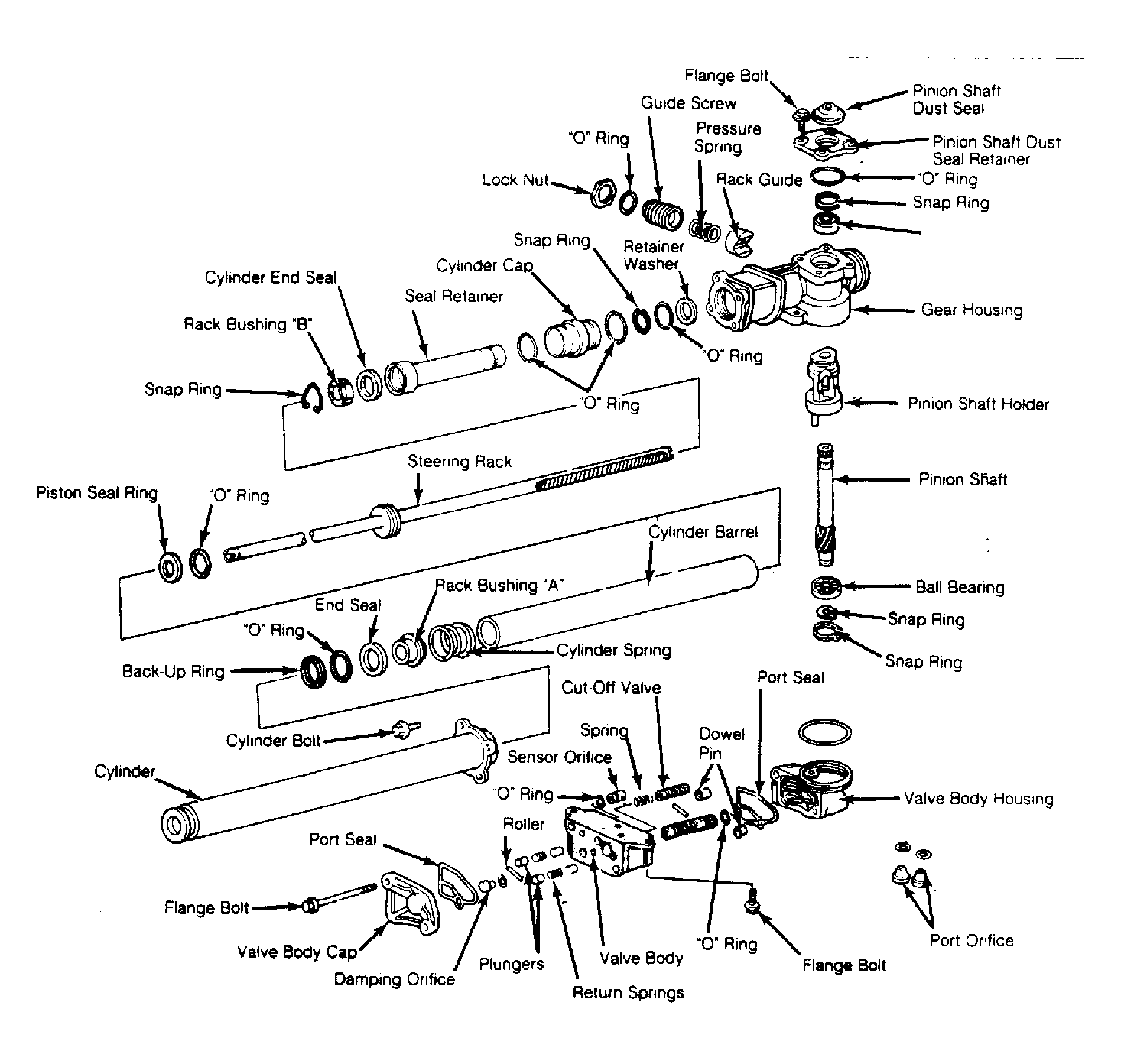

Fig 1: Exploded View of 825 Power Steering Gear

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: View of 825 Speed Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
