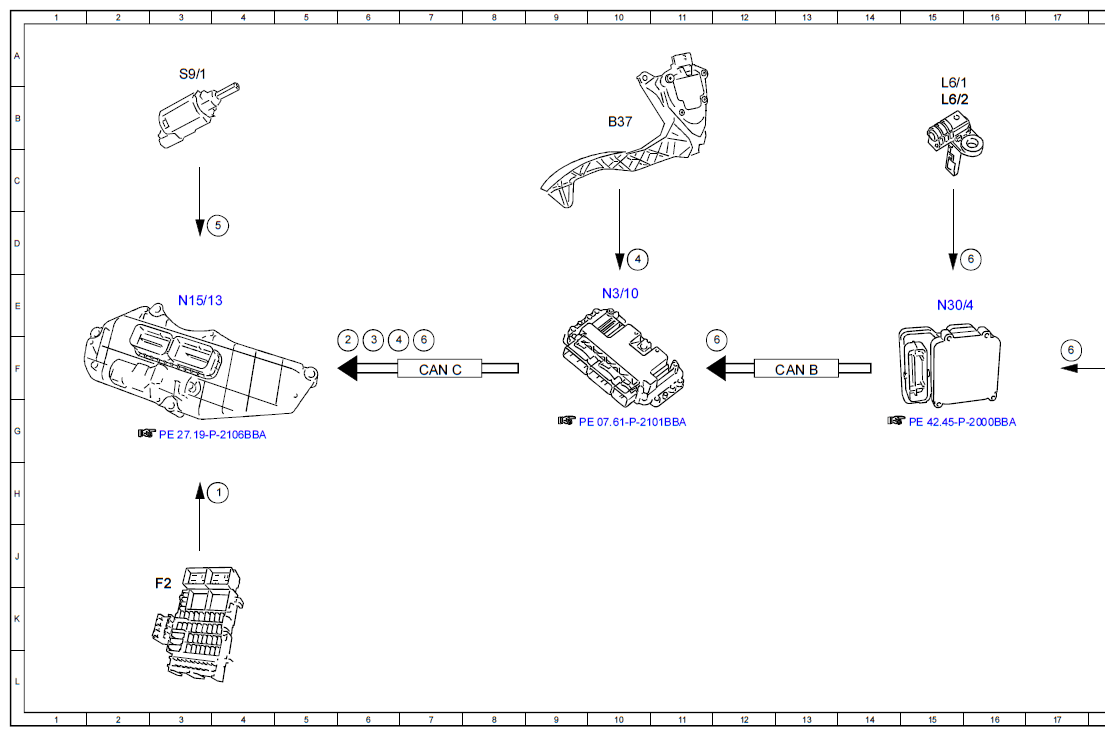

Electrical Function Schematic For Starting Off And Stopping The Vehicle, Function - PE27.19-P-2064-97BBA
TRANSMISSION 700.4 in MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 3H |
| 2 | Engine running, signal | 6F |
| 3 | Engine speed, signal | 6F |
| 4 | Accelerator pedal, status | 7F |
| 4 | Accelerator pedal, status | 10D |
| 5 | Brake pedal, status | 4D |
| 6 | Wheel speed, signal | 7F |
| 6 | Wheel speed, signal | 12F |
| 6 | Wheel speed, signal | 16D |
| 6 | Wheel speed, signal | 17F |
| B37 | Accelerator pedal sensor | 10B |
| CAN B | Interior CAN | 13F |
| CAN C | Drive train CAN | 7F |
| F2 | Vehicle interior fuse and relay module | 3K |
| L6/1 | Left front axle rpm sensor | 15B |
| L6/2 | Right front axle rpm sensor | 15B |

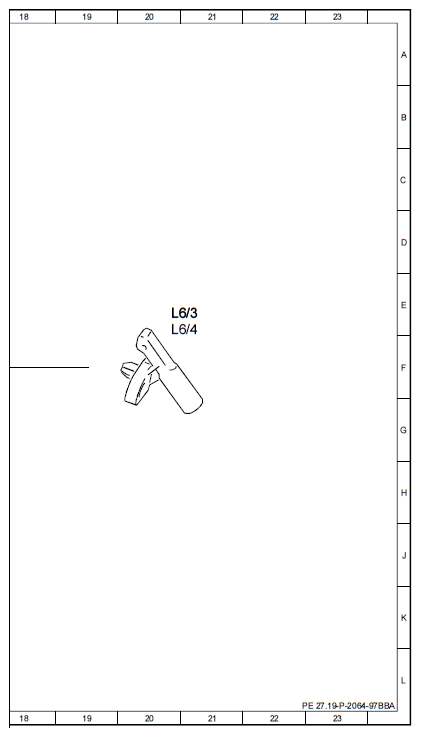

| L6/3 | Left rear axle rpm sensor | 20E |
| L6/4 | Right rear axle rpm sensor | 20E |
| N15/13 | Double clutch transmission control unit | 3E |
| N3/10 | ME-SFI [ME] control unit | 10E |
| N30/4 | Electronic Stability Program control unit | 15E |
| S9/1 | Stop lamp switch | 3A |
