Remove/Install Steering Wheel Look - AR46.10-P-0900SR
MODEL 453
| Remove | |||
| 1 | Remove upper and lower steering column trim | AR68.30-P-2000SR | |

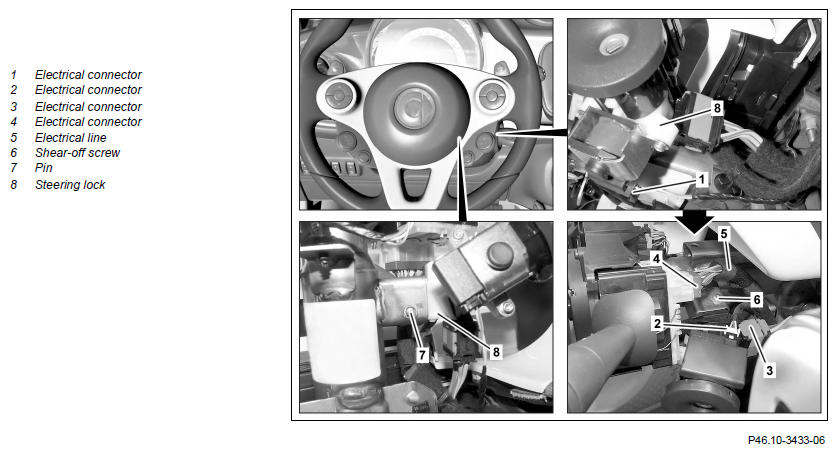

| 2 | Disconnect electrical connector (1) | ||
| 3 | Disconnect electrical connector (2) | ||
| 4 | Pull retaining bracket upwards and disconnect electrical connection (3) | ||
| 5 | Detach electrical connection (4) and move electrical line (5) out of working area | ||
| 6 | Move steering column to lowest position and lock in place | ||
| 7 | Use suitable chisel on shear-off screw (6), the remove it by applying individual, targeted hammer impacts in a counterclockwise direction | Cover up all the surrounding components. Otherwise the components may be damaged. |
|
| 8 | Remove shear-off screw (6) | ||
| 9 | Insert ignition key into steering lock (8) and turn to position "1" | ||
| 10 | Press pin (7) and remove steering lock (8) to the right | ||
| Install | |||
| 11 | Insert ignition key into steering lock (8) and turn to position "1" | ||
| 12 | Press pin (7) and install steering lock (8) | ||
| 13 | Tighten new shear-off screw (6) until the bolt head is sheared off | ||
| 14 | Connect electrical connector (4) | ||
| 15 | Connect electrical connection (3) and lock with retainer | ||
| 16 | Connect electrical connector (2) | ||
| 17 | Connect electrical connector (1) | ||
| 18 | Install upper and lower steering column trim | AR68.30-P-2000SR |
