Remove/Install Steering Wheel - AR46.10-P-0100SR

MODEL 453

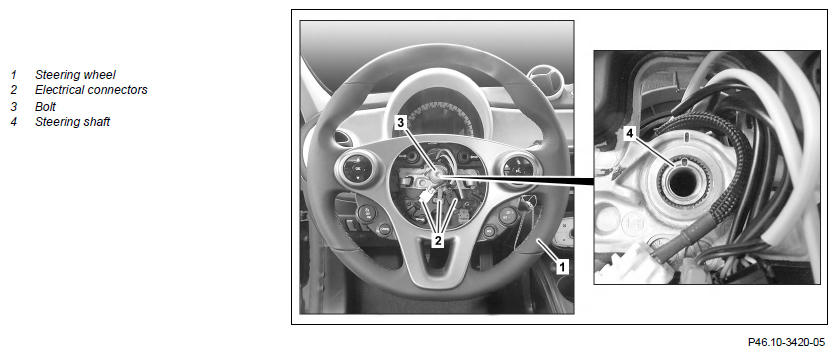

G12094998

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Move front wheels to straight-ahead position and turn steering wheel to center position
2	Remove airbag unit from steering wheel (1)		AR91.60-P-0660SR
3	Separate electrical connectors (2)
4	Unscrew bolt (3)	: Replace bolt (3). Counterhold steering wheel (1). Bolt, steering wheel to steering shaft	*BA46.10-P-1001-05B
5	Remove steering wheel (1)	: The groove on the steering wheel (1) and the groove on the steering shaft (4) must line up as shown.
6	Install in the reverse order

STEERING WHEEL, STEERING COLUMN TUBE, STEERING SHAFT

Number	Designation		MODEL 453
BA46.10-P-1001-05B	Bolt, steering wheel to steering shaft	Nm	44
