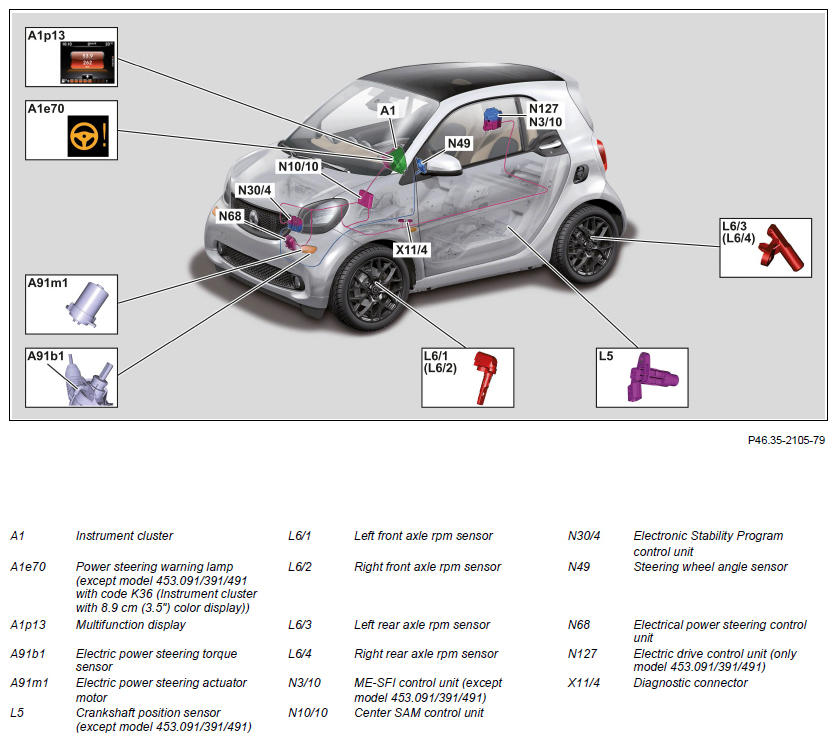

Overview Of System Components Of Electric Power Steering (ES) - GF46.35-P-9997KJ
MODEL 453.0/3/4
Shown on Model 453.3
| Component description for instrument cluster | Model 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) with code K35 (Instrument cluster with monochrome display) with code K36 (Instrument cluster with 8.9 cm (3.5") color display) A1 | GF54.30-P-6000KJ | |
| Model 453.091/391/491 with code K35 (Instrument cluster with monochrome display) or with code K36 (Instrument cluster with 8.9 cm (3.5") color display) | GF54.30-P-6000KJE | ||
| Component description for ME-SFI (ME) control unit | Vehicles with engine 281.910 N3/10 | GF07.61-P-6000KJ | |
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KJ | |
| Steering angle sensor, component description | N49 | GF42.45-P-5107KJ | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010KJ | |
| Component description for electric drive control unit | Model 453.091/391/491 N127 | GF08.20-P-3001KJE | |
| Contents, function description of electric power steering (ES) | GF46.35-P-0999KJ |
