Remove/Install Track Rod - AR46.40-P-0200SR

MODEL 453

Courtesy of MERCEDES-BENZ USA

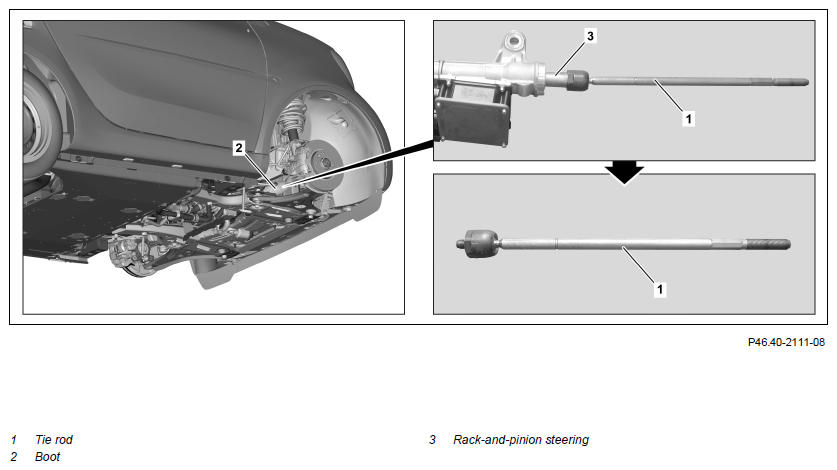

Shown on right side of vehicle

	Remove/install
1	Remove boot (2) of left or right tie rod (1)		AR46.40-P-7200SR
2	Unscrew tie rod (1) from rack-and pinion steering (3)	Inner tie rod to rack-and-pinion steering	*BA46.40-P-1003-01F
3	Install in the reverse order
4	Perform wheel alignment check		AR40.20-P-0200SR

TIE ROD

Number	Designation		MODEL 453
BA46.40-P-1003-01F	Inner tie rod to rack-and-pinion steering	Nm	90
