Remove/Install Steering Angle Sensor - AR46.10-P-0300SR
MODEL 453
MODIFICATION NOTES
| 21.06.2018 | Calibrate steering wheel angle sensor added and operation step variant created. | Operation step 7 |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove steering wheel. | AR46.10-P-0100SR | |
| 2 | Remove steering column trim. | AR68.30-P-2000SR | |

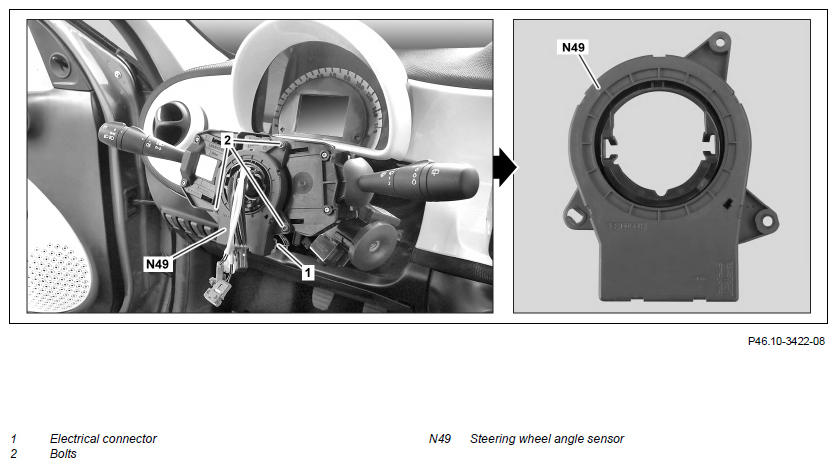

| 3 | Disconnect electrical connector (1). | ||
| 4 | Unscrew bolts (2). | ||
| 5 | Remove steering wheel angle sensor (N49). | ||
| 6 | Install in the reverse order. | ||
| 7.1 |
Connect diagnostic device, calibrate steering wheel angle sensor (N49) and read out fault memory. | If the steering wheel angle sensor (N49) was replaced. | AD00.00-P-2000-06SR |
| 7.2 |
Connect diagnostic device and read out fault memory. | If the steering wheel angle sensor (N49) was not replaced. | AD00.00-P-2000-06SR |
