Overview Of System Components For Climate Control - GF83.40-P-9994KJE
MODEL 453.091/391/491

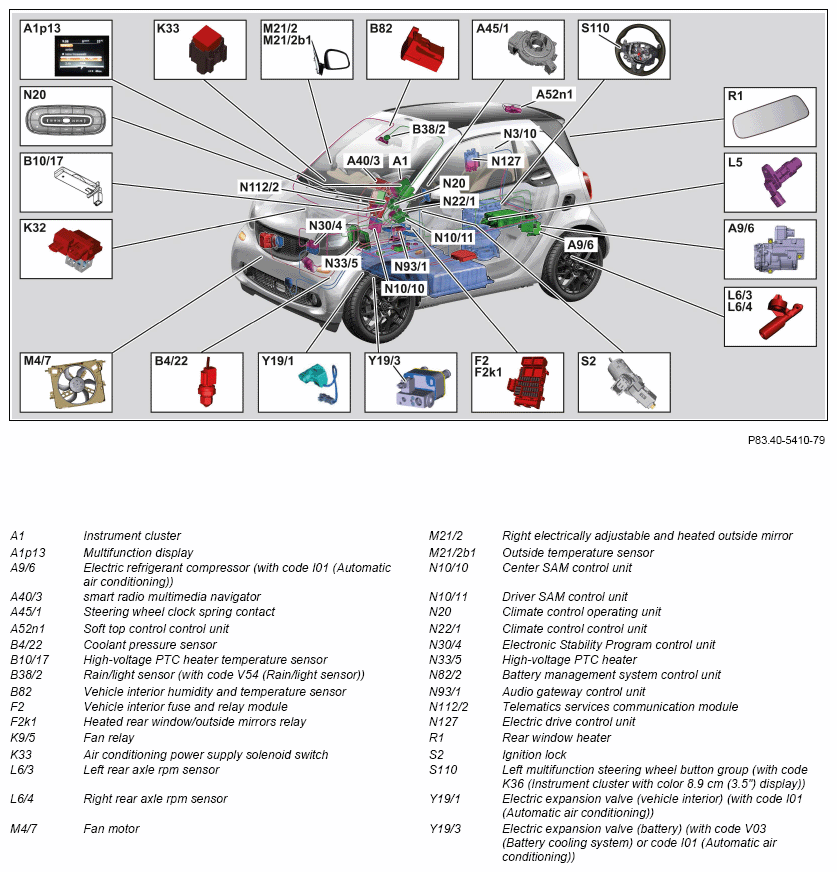

Shown on model 453.4 with code I01 (Automatic air conditioning system)
The electrical expansion valve (vehicle interior) consists of the expansion valve on the evaporator itself and an electric solenoid valve, which is located in the high-pressure line upstream of the expansion valve (vehicle interior) and controls the flow of refrigerant to the expansion valve. The two subcomponents are connected with a high- pressure line. The electric solenoid valve of the electrical expansion valve (battery) is integrated into the housing of the expansion valve (battery) itself.

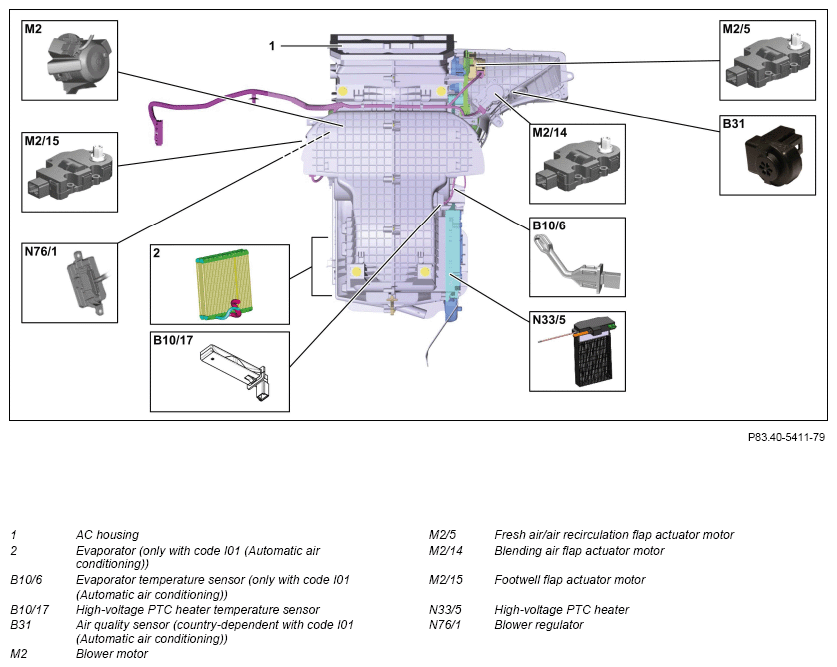

Shown on air conditioner housing with code I01 (Automatic air conditioning)
| Component description for instrument cluster | Model 453.091/391/491 with code K35 (Instrument cluster with monochrome display) Model 453.091/391/491 with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1 |
GF54.30-P-6000KJE | |
| Component description for electric refrigerant compressor | Model 453.091/391/491 with code I01 (Automatic air conditioning) A9/6 | GF83.55-P-2110KJE | |
| Smart media system, component description | Model 453.091/391/491 with code 535 (smart Media system) A40/3 | GF82.85-P-3142KJ | |
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Driver-side SAM control unit, component description | N10/11 | GF54.21-P-7012KJ | |
| Climate control operating unit, component description | N20 | GF83.40-P-2261KJE | |
| Climate control unit, component description | N22/1 | GF83.40-P-2250KJE | |
| High-voltage PTC heater, component description | N33/5 | GF83.70-P-4065KJE | |
| Component description for battery management system control unit | Model 453.091/391/491 with engine 780 N82/2 | GF54.10-P-3012KJE | |
| Audio gateway control unit, component description | N93/1 | GF82.62-P-3119KJ | |
| Telematics services communications module, component description | Model 453.091/391/491 with code 535 (smart Media system) N112/2 | GF82.85-P-0220KJ | |
| Component description for electric drive control unit | Model 453.091/391/491 with engine 780 N127 | GF08.20-P-3001KJE | |
| Table of contents for climate control function description | GF83.40-P-0994KJE |
