Overview Of System Components For Climate Control - GF83.40-P-9994KJ
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491)

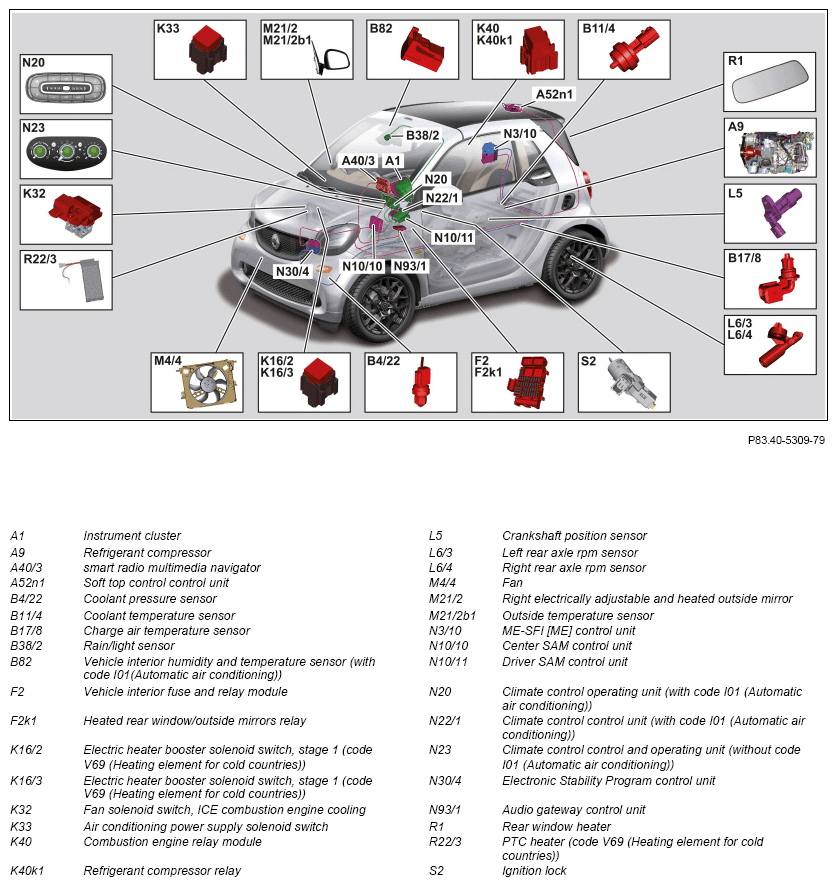

Shows on model 453.3

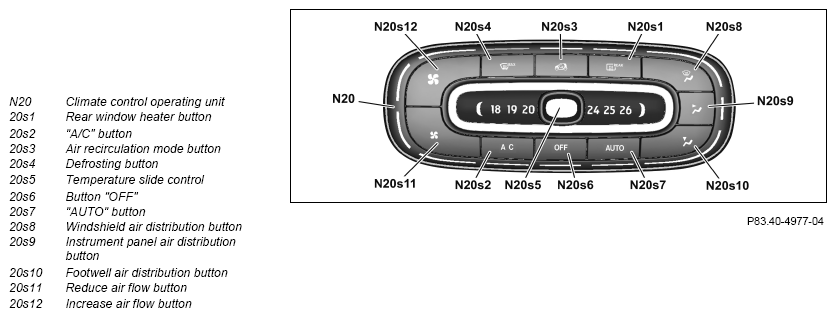

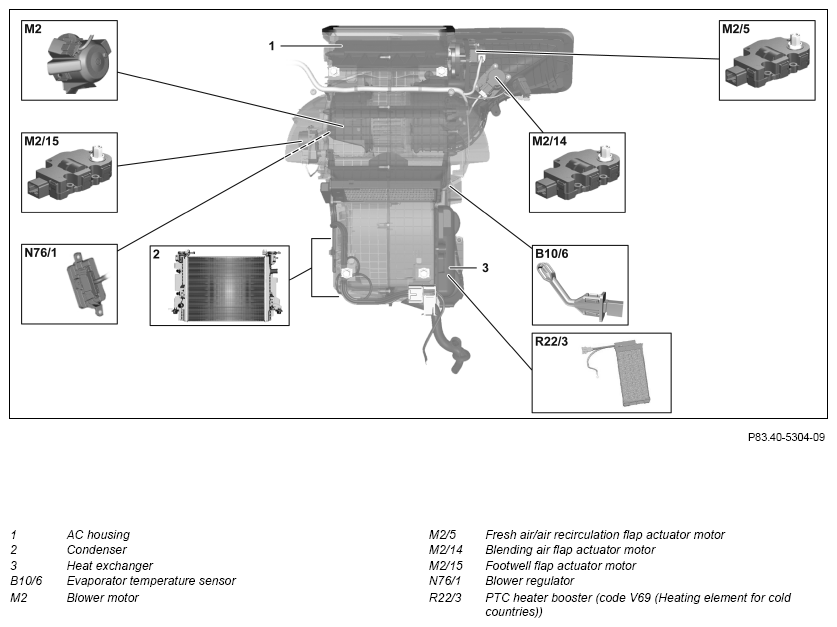

Shown on air conditioner housing with code I01 (Automatic air conditioning)
Shown with code I01 (Automatic air conditioning) without code 494 (USA version)

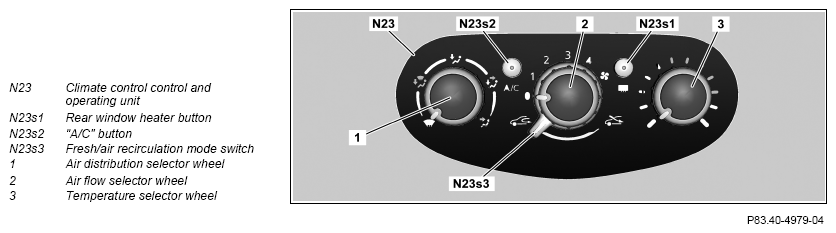

Shown with code I77 (Manual air conditioning system)
| Component description for instrument cluster | Vehicles with code K35 (Instrument cluster with monochrome display) or with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1 | GF54.30-P-6000KJ | |
| smart media system, component description | Vehicles with code 535 (Smart Media System) A40/3 | GF82.85-P-3142KJ | |
| Component description for ME-SFI (ME) control unit | Vehicles with engine 281.920 N3/10 | GF07.61-P-6000KJF | |
| Vehicles with engine 281.910 | GF07.61-P-6000KJ | ||
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Driver-side SAM control unit, component description | N10/11 | GF54.21-P-7012KJ | |
| Climate control operating unit, component description | Vehicles with code I01 (Automatic air conditioning) N20 | GF83.40-P-2261KJ | |
| Climate control unit, component description | Vehicles with code I01 (Automatic air conditioning) N22/1 | GF83.40-P-2250KJ | |
| Component description for climate control and operating unit | Vehicles without code I01 (Automatic air conditioning) N23 | GF83.40-P-3002KJ | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KJ | |
| Audio gateway control unit, component description | N93/1 | GF82.62-P-3119KJ | |
| Table of contents for climate control function description | GF83.40-P-0994KJ |
