Overview Of System Components Motor Electronics (ME-SFI) Fuel Injection And Ignition System - GF07.61-P-9997KJ
ENGINE 281.910 in MODEL 453.0/3/4

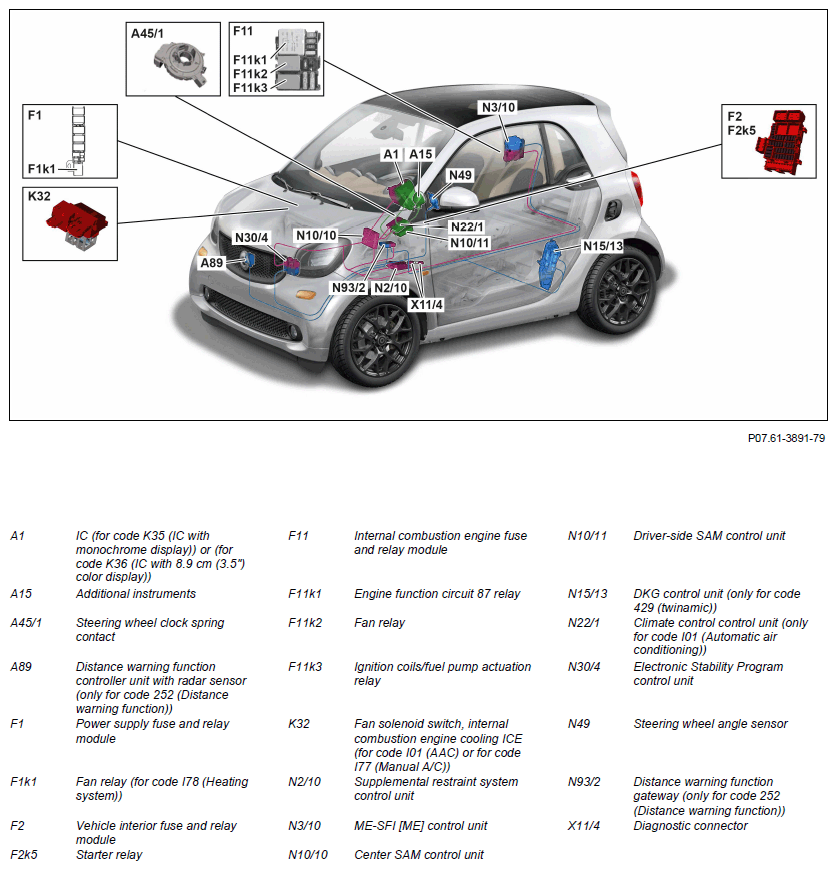

Vehicle view from the front left shown on model 453.3

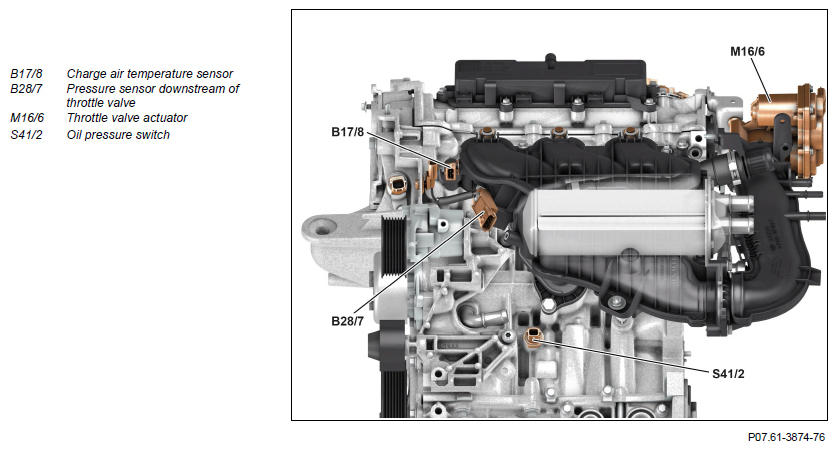

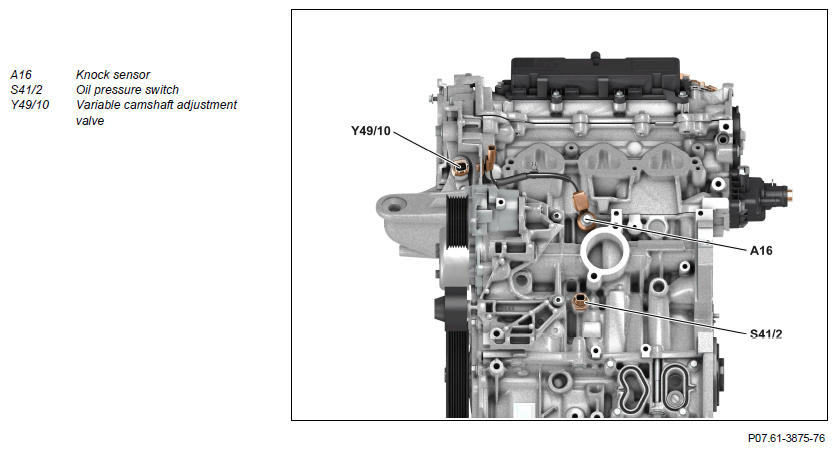

View of engine from rear left
View of engine from rear left

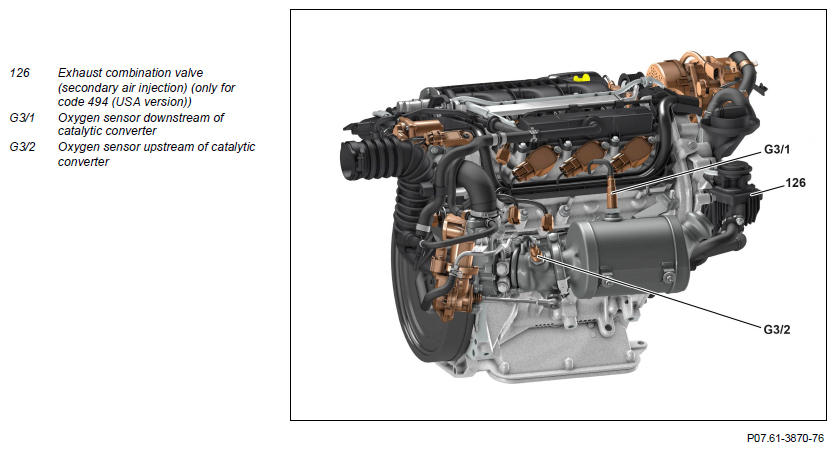

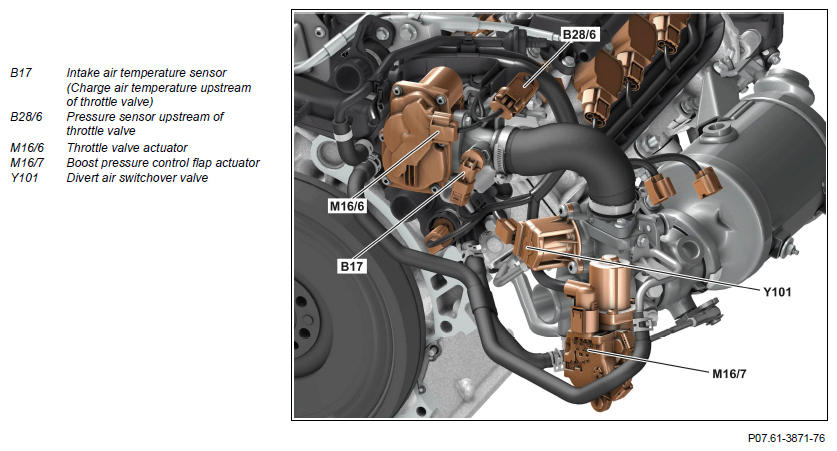

View of the engine from above

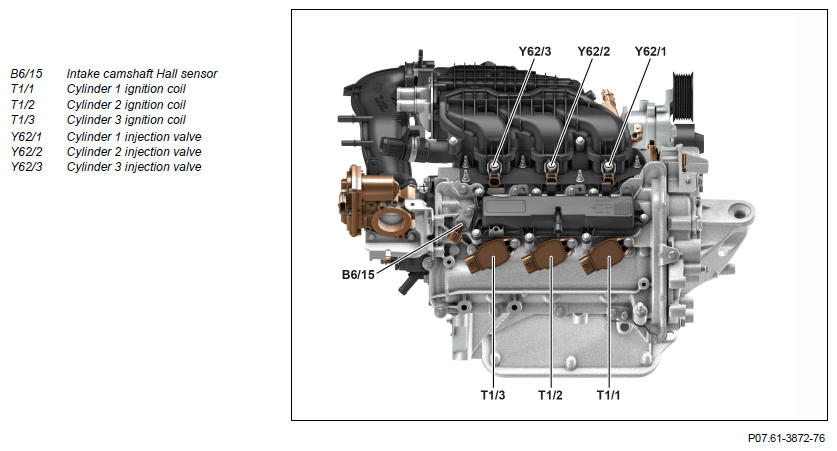

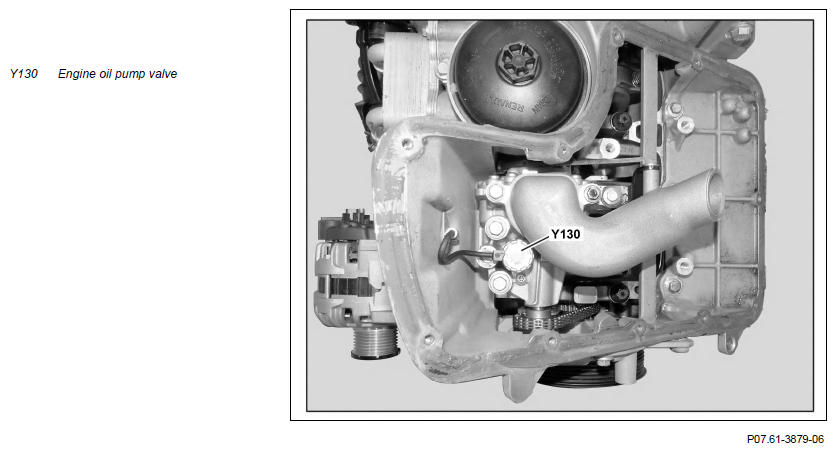

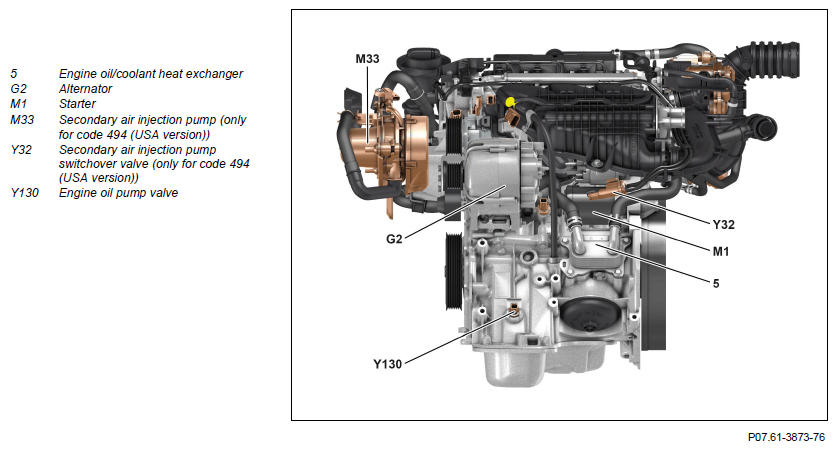

View of engine from the front
View of engine from the front
View of engine from the front

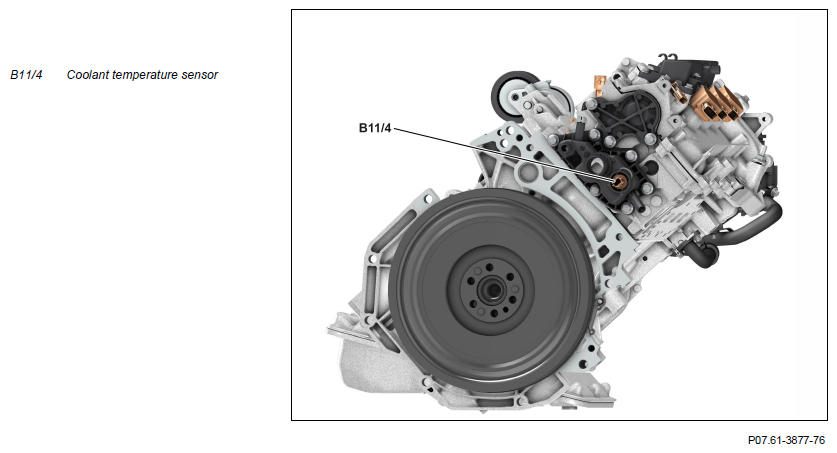

View of engine from the left
View of engine from the below

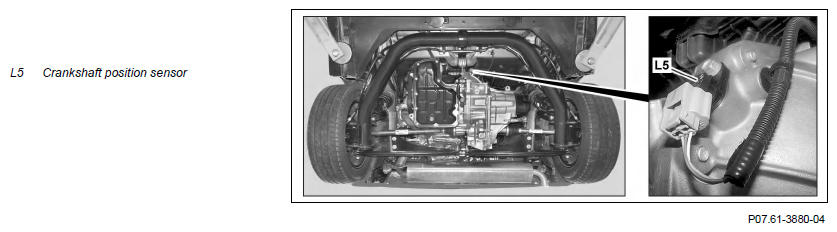

Vehicle view from below

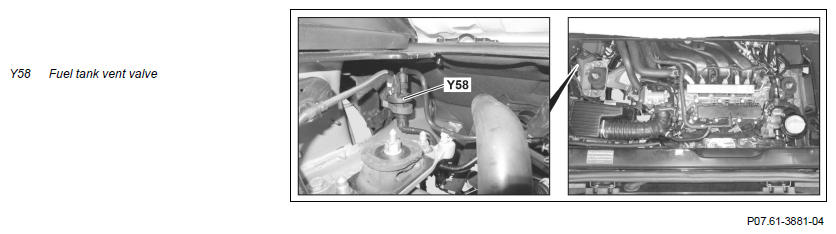

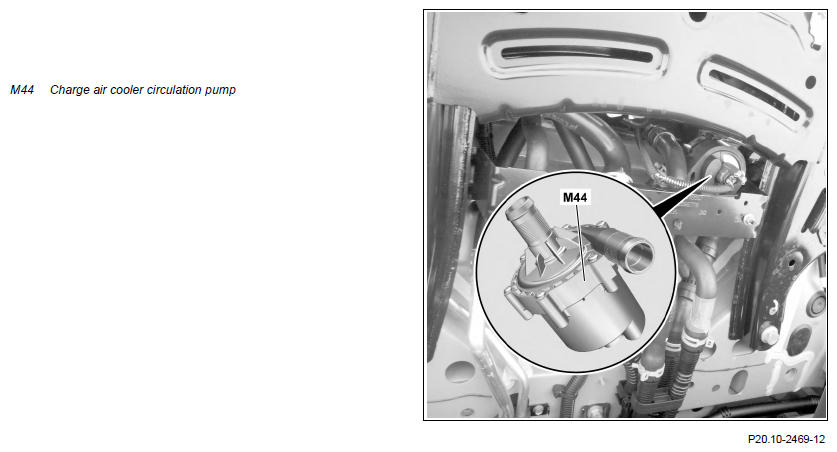

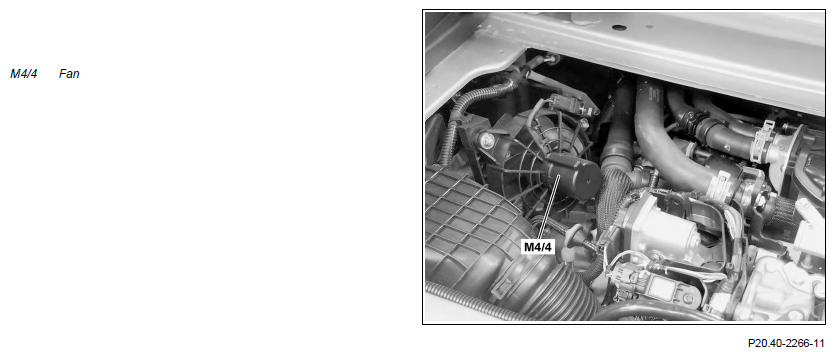

View of engine compartment
View of engine compartment
Vehicle view from above at front

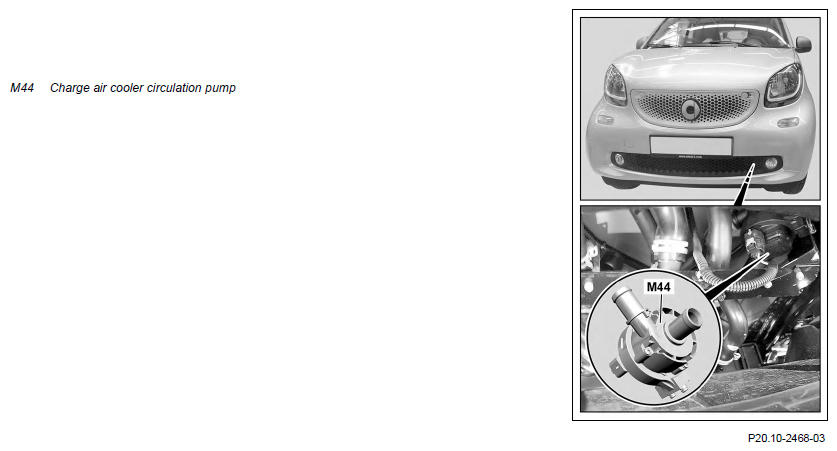

Vehicle view from the lower front (except model 453.062/362/462 BRABUS with code ICBA (BRABUS))
Vehicle view from the lower front (model 453.062/362/462 BRABUS with code ICBA (BRABUS))

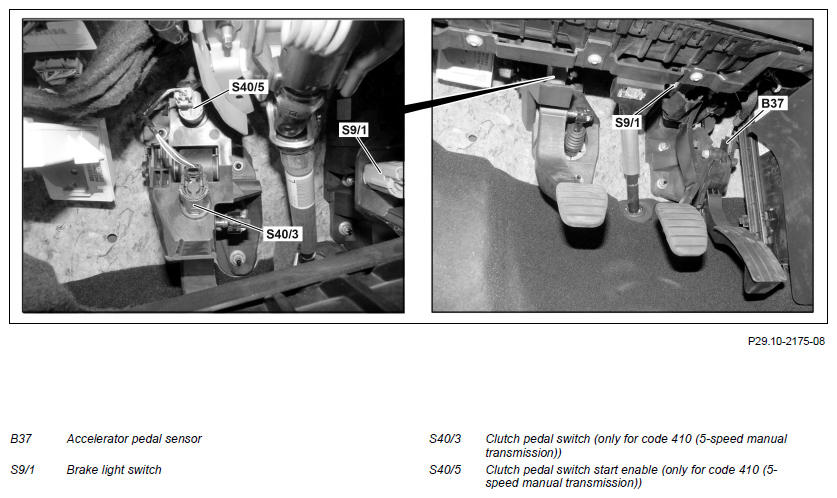

View of pedal assembly

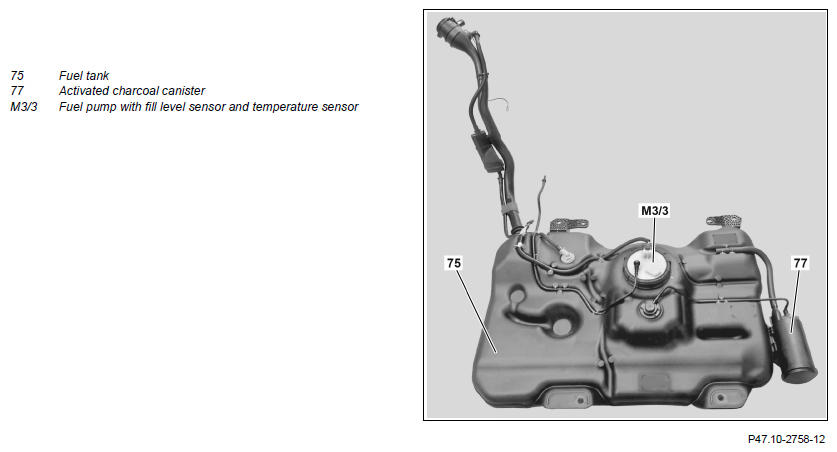

View of fuel tank

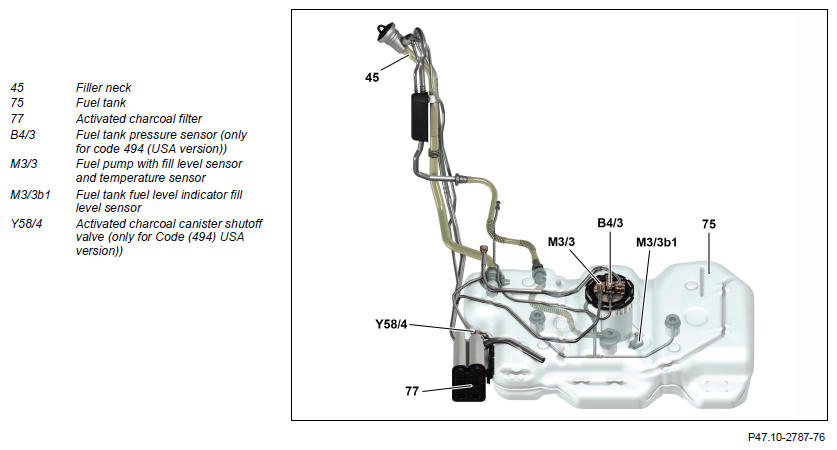

View of fuel tank (for code 494 (USA version))
View of steering column from the right

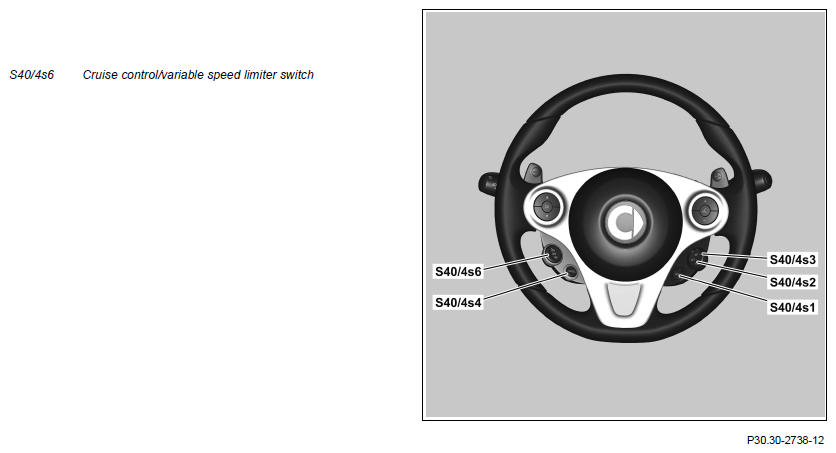

View of multifunction steering wheel

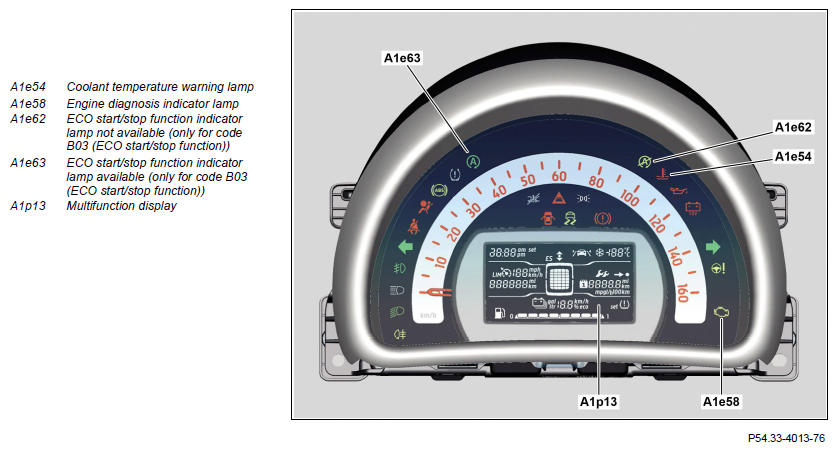

View of IC (A1) (shown with code K35 (IC with a monochrome display))
View of instrument panel from the left
| Component description for instrument cluster | Vehicles with code K35 (Instrument cluster with monochrome display) or with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1 |
GF54.30-P-6000KJ | |
| Distance warning function controller unit with radar sensor, component description | Vehicles with code 252 (Distance warning function) A89 |
GF30.30-P-3216KJ | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080KJ | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000KJ | |
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Driver-side SAM control unit, component description | N10/11 | GF54.21-P-7012KJ | |
| Dual clutch transmission control unit, component description | Vehicles with transmission 700.4 with code 429 (Twinamic) N15/13 |
GF27.60-P-5171KJ | |
| Climate control control unit, component description | Vehicles with code I01 (Automatic air conditioning) N22/1 |
GF83.40-P-2250KJ | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KJ | |
| Distance warning function gateway, component description | Vehicles with code 252 (Distance warning function) N93/2 |
GF30.30-P-3217KJ | |
| Table of contents for function description of motor electronics (ME-SFI) fuel injection and ignition system | GF07.61-P-0999KJ |
