Remove/Install Knock Sensor - AR15.12-P-2185SRA
ENGINE 281.910 in MODEL 453
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Drain coolant | AR20.00-P-1142SR | |
| 2 | Remove charge air distributor | AR09.41-P-1310SR | |

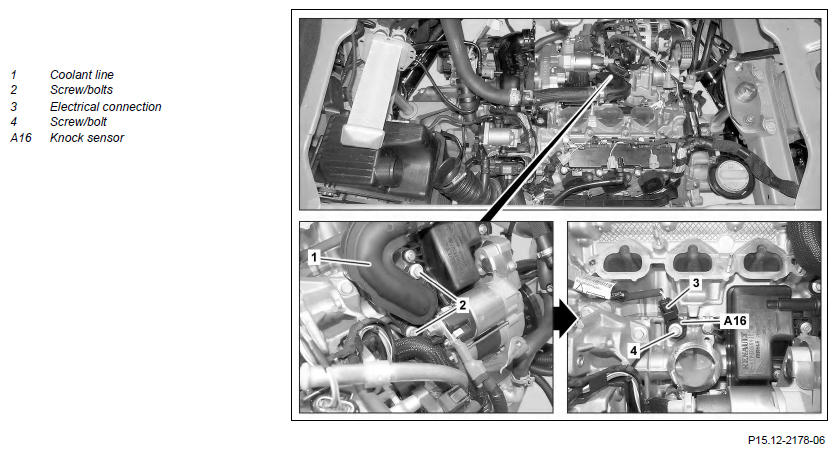

| 3 | Remove screw/bolts (2) | ||
| 4 | Remove coolant line (1) from crankcase and remove from working area | ||
| 5 | Disconnect electrical connection (3) | ||
| 6 | Mark installation position of knock sensor (A16) | ||
| 7 | Remove screw/bolt (4) and remove knock sensor (A16) from crankcase | ||
| Install | |||
| 8 | Transfer marking of the installation position to the new part | When installing new a knock sensor (A16). | |
| 9 | Lay knock sensor (A16) on the crankcase and tighten with screw/bolt (4) | Observe the marking for the installation position. |
*BA15.12-P-1001-01G |
| 10 | Connect Electrical connection (3) | ||
| 11 | Insert coolant line (1) in crankcase | ||
| 12 | Screw in screw/bolts (2) | *BA20.10-P-1012-01J | |
| 13 | Install charge air distributor | AR09.41-P-1310SR | |
| 14 | Pour in coolant and bleed cooling system | AR20.00-P-1142SR | |
| 15 |
Connect diagnostic unit, read out fault memory | When installing new a knock sensor (A16). | AD00.00-P-2000-06SR |
ELECTRONIC IGNITION WITH VARIABLE CHARACTERISTICS
| Number | Designation | ENGINE 281 | |
|---|---|---|---|
| BA15.12-P-1001-01G | Screw/bolt, knock sensor to crankcase | Nm | 20 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | ENGINE 281 | |
|---|---|---|---|
| BA20.10-P-1012-01J | Bolt, coolant line to crankcase | Nm | 10 |
