Remove/Install Alternator - AR15.40-P-5032SR
ENGINE 281 in MODEL 453
| Remove/install | |||
| 1 | Disconnect ground line of battery | AR54.10-P-0003SR | |
| 2 | Remove poly-V belt | AR13.22-P-1202SR | |
| 3 | Lower rear drive module | AR01.00-P-3050SR | |

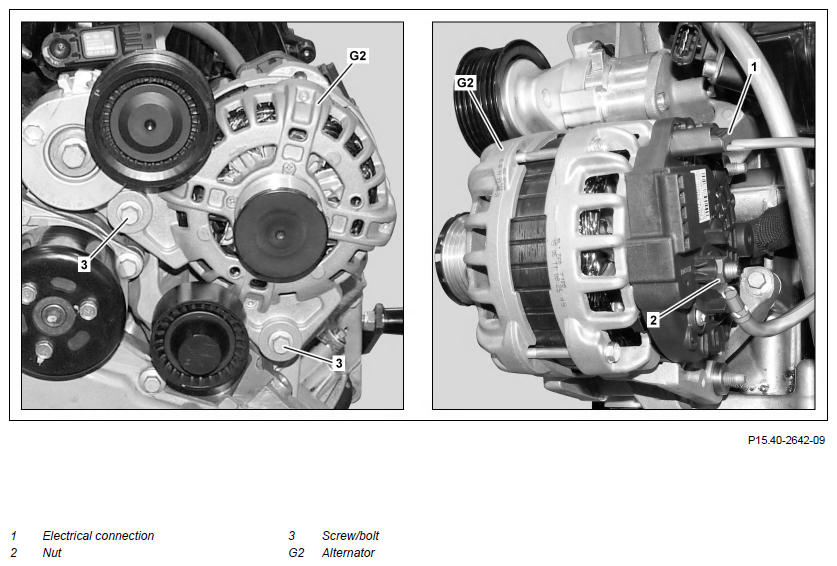

| 4 | Disconnect electrical connection (1) at the alternator (G2) | ||
| 5 | Unscrew nut (2) and remove electrical line from alternator (G2) | *BA15.40-P-1002-01G | |
| 6 | Remove screws/bolts (3) | ||
| 7 | Remove alternator (G2) | ||
| 8 | Install in the reverse order |
ALTERNATOR
| Number | Designation | ENGINE 281 | |
|---|---|---|---|
| BA15.40-P-1002-01G | Electrical line at alternator, terminal B+ | Nm | 21 |
