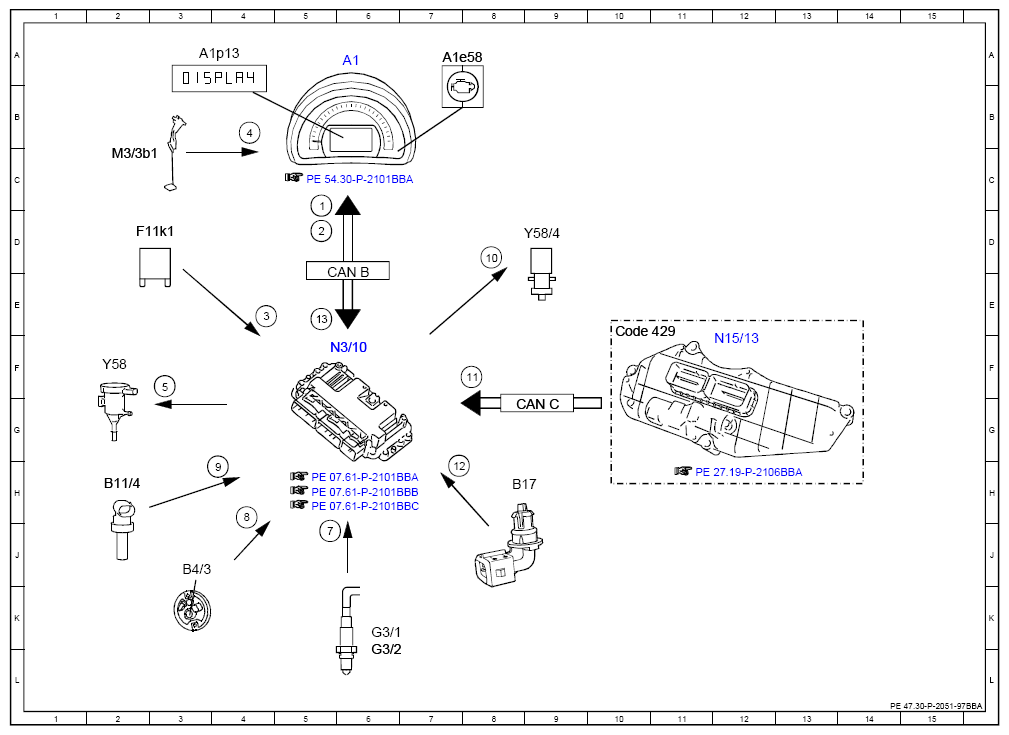

Electrical Function Schematic For System Purging With Leak Test - PE47.30-P-2051-97BBA
ENGINE 281.910 in MODEL 453.3/4 with CODE 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 5C |
| 10 | Activated charcoal canister shutoff valve, actuation | 8D |
| 11 | Gear range, status | 8F |
| 12 | Intake air temperature sensor, signal | 7H |
| 13 | Fuel level, signal | 5E |
| 2 | Instrument cluster, message | 5D |
| 3 | Circuit 87. status | 4E |
| 4 | Fuel tank fuel level indicator fill level sensor, signal | 4B |
| 5 | Fuel tank vent valve, actuation | 3F |
| 7 | Oxygen sensor, signal | 5J |
| 8 | Fuel tank pressure sensor, signal | 4H |
| 9 | Coolant temperature sensor, signal | 4H |
| A1 | Instrument cluster | 6A |
| A1e58 | Engine diagnosis indicator lamp | 7A |
| A1p13 | Multifunction display | 3A |
| B11/4 | Coolant temperature sensor | 2H |
| B17 | Intake air temperature sensor | 8H |
| B4/3 | Fuel tank pressure sensor | 3J |
| CAN B | Interior CAN | 6E |
| CAN C | Drive train CAN | 9G |
| Code 429 | twinamic | 10E |
| F11k1 | Engine function circuit 87 relay | 2D |
| G3/1 | Oxygen sensor downstream of catalytic converter | 6K |
| G3/2 | Oxygen sensor upstream of catalytic converter | 6L |
| M3/3b1 | Fuel tank fuel level indicator fill level sensor | 2C |
| N15/13 | Double clutch transmission control unit | 12F |
| N3/10 | ME-SFI [ME] control unit | 6F |
| Y58 | Fuel tank vent valve | 2F |
| Y58/4 | Activated charcoal filter shutoff valve | 9D |
