Remove/Install Steering Column Module - AR54.25-P-2802SR
MODEL 453
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

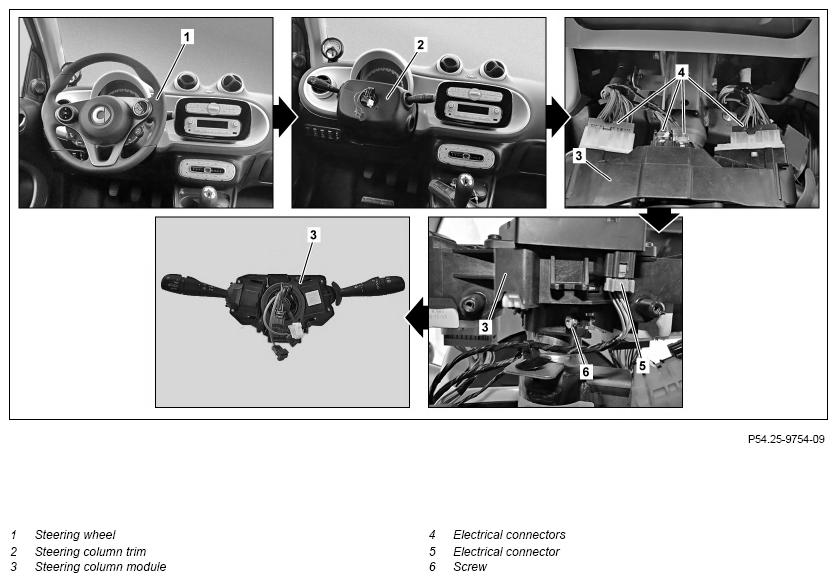

| 1 | Remove steering wheel (1). | AR46.10-P-0100SR | |
| 2 | Remove steering column trim (2). | AR68.30-P-2000SR | |
| 3 | Disconnect electrical connectors (4, 5). | ||
| 4 | Release bolt (6) and remove steering column tube module (3) upwards. | ||
| 5 | Install in the reverse order. | ||
| 6 | Connect diagnostic device and read out fault memory. | ||
| AD00.00-P-2000-06SR |
