Remove/Install Card Reader For Windshield Reader System - AR54.30-P-2005SR
MODEL 453.0/3/4
with CODE 55P (PRIVATE CAR SHARING KEY CARD HOLDER (KCH))
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of card reader (A50/5) with vehicle diagnosis system. | When replacing the card reader (A50/5). | |
| AD00.00-P-2000-06SR | |||
| 2 | Disconnect ground line from battery. | AR54.10-P-0003SR | |

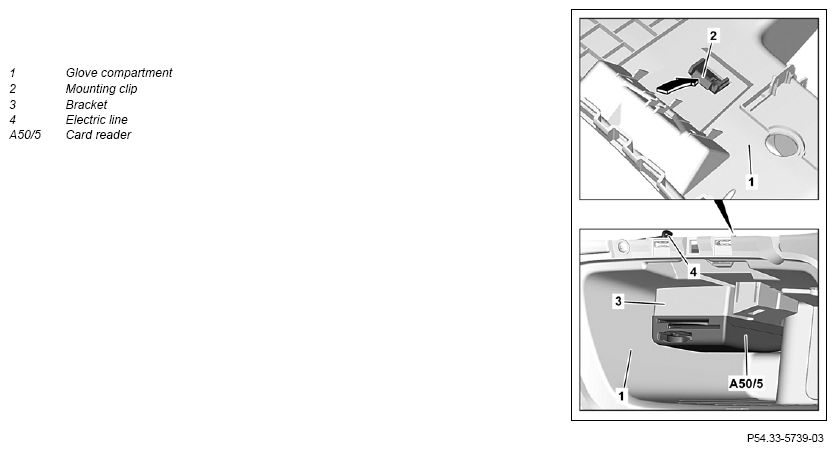

| 3 | Remove glove compartment (1). | AR68.10-P-1402SR | |
| 4 | Disconnect electrical connector of card reader (A50/5). | ||
| 5 | Press retaining clip (2) in direction of arrow and unclip card reader (A50/5) with holder (3) from glove compartment (1). | ||
| 6 | Expose electric line (4) and guide through the opening in the glove compartment (1). | ||
| 7 | Remove card reader (A50/5) with holder (3). | ||

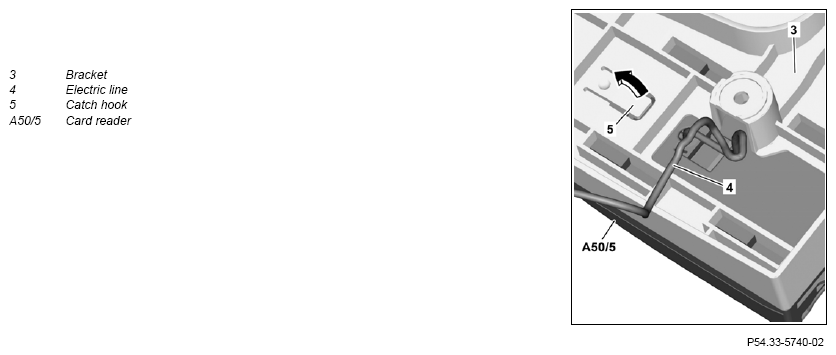

| 8 | Release catch hooks (5) in direction of arrow and remove card reader (A50/5) from holder (3). | When replacing the card reader (A50/5). | |
| 9 | Install in the reverse order. |
