Overview Of System Components, Instrument Cluster (IC) Component Description - GF54.30-P-9996KJE
MODEL 453.091/391/491 with CODE K35 (Instrument cluster with monochrome display)
MODEL 453.091/391/491 with CODE K36 (Instrument cluster with color 8.9 cm (3.5") display)

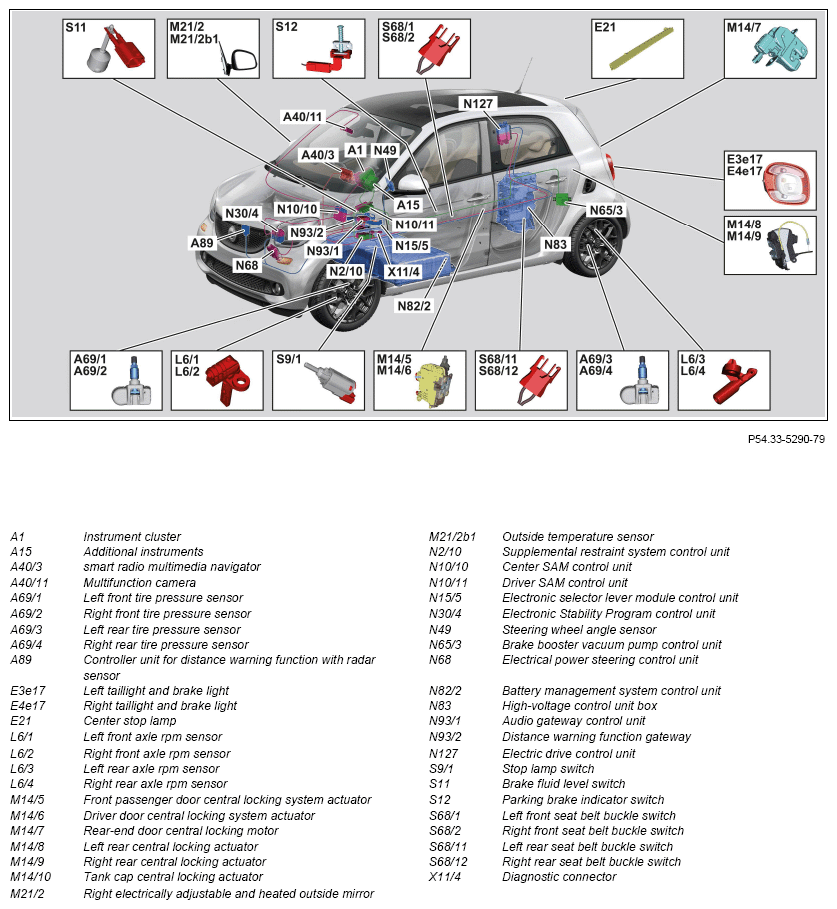

Shown: Model 453.091

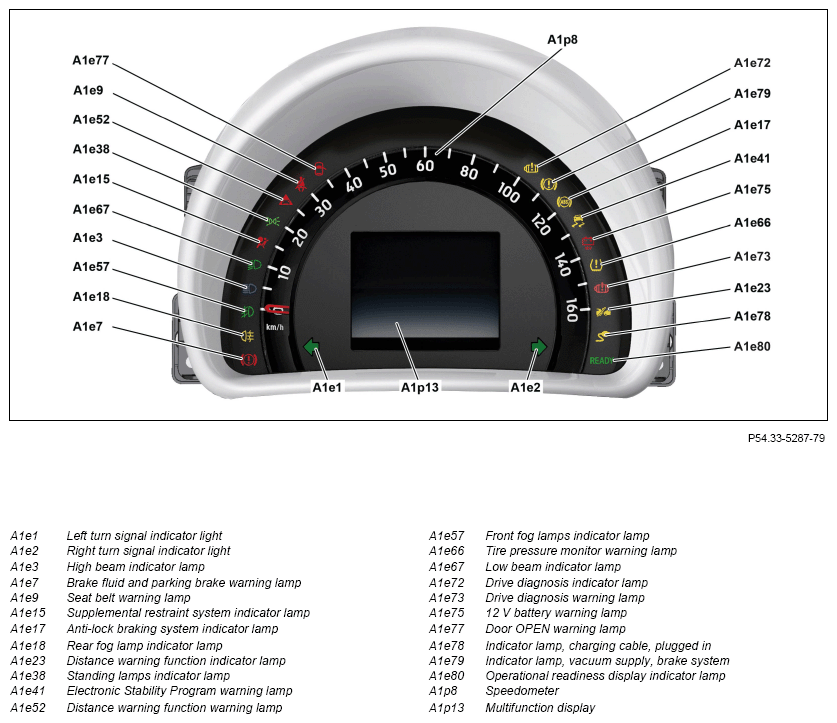

Shown on instrument cluster with code K36 (Instrument cluster with color 8.9 cm (3.5") display) without code 494 (USA version)
The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
| Component description for instrument cluster | A1 | GF54.30-P-6000KJE | |
| smart media system, component description | Model 453.091/391/491 with code 535 (smart Media system) with code K35 (Instrument cluster with monochrome display) Model 453.091/391/491 with code 535 (smart Media system) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A40/3 |
GF82.85-P-3142KJ | |
| Component description for multifunction camera | Model 453.091/391/491 with code 238 (Lane keeping assist) with code K35 (Instrument cluster with monochrome display) Model 453.091/391/491 with code 238 (Lane keeping assist) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A40/11 |
GF54.21-P-3300KJ | |
| Distance warning function controller unit with radar sensor, component description | Model 453.091/391/491 with code 252 (Distance warning function) with code K35 (Instrument cluster with monochrome display) Model 453.091/391/491 with code 252 (Distance warning function) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A89 |
GF30.30-P-3216KJ | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080KJ | |
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Driver-side SAM control unit, component description | N10/11 | GF54.21-P-7012KJ | |
| Component description for electronic selector lever module control unit | N15/5 | GF27.60-P-5163KJE | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KJ | |
| Steering angle sensor, component description | N49 | GF42.45-P-5107KJ | |
| Vacuum pump control unit component description | N65/3 | GF43.05-P-1210KJE | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010KJ | |
| Component description for battery management system control unit | N82/2 | GF54.10-P-3012KJE | |
| High-voltage control unit box, component description | N83 | GF54.21-P-3057KJE | |
| Audio gateway control unit, component description | N93/1 | GF82.62-P-3119KJ | |
| Distance warning function gateway, component description | Model 453.091/391/491 with code 252 (Distance warning function) with code K35 (Instrument cluster with monochrome display) Model 453.091/391/491 with code 252 (Distance warning function) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) N93/2 |
GF30.30-P-3217KJ | |
| Component description for electric drive control unit | N127 | GF08.20-P-3001KJE |
