Overview Of System Components, Instrument Cluster (IC) Component Description - GF54.30-P-9996KJ
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) with CODE K35 (Instrument cluster with monochrome display)
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) with CODE K36 (Instrument cluster with color 8.9 cm (3.5") display)

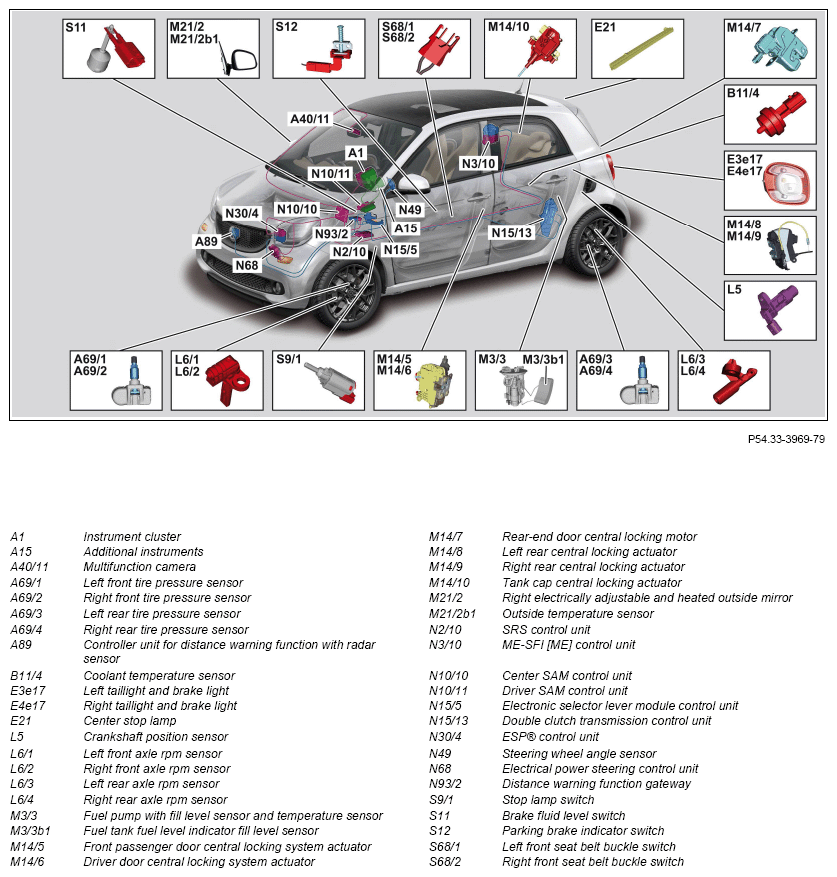

Shown here is model 453.0

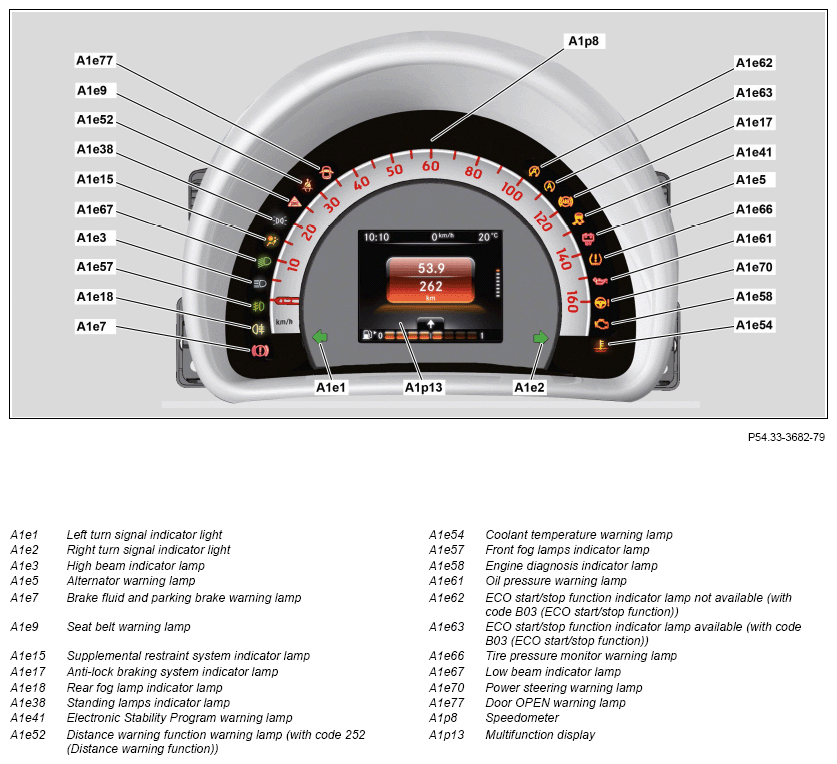

Shown on instrument cluster with code K36 (Instrument cluster with color 8.9 cm (3.5") display) without code 494 (USA version)
The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)

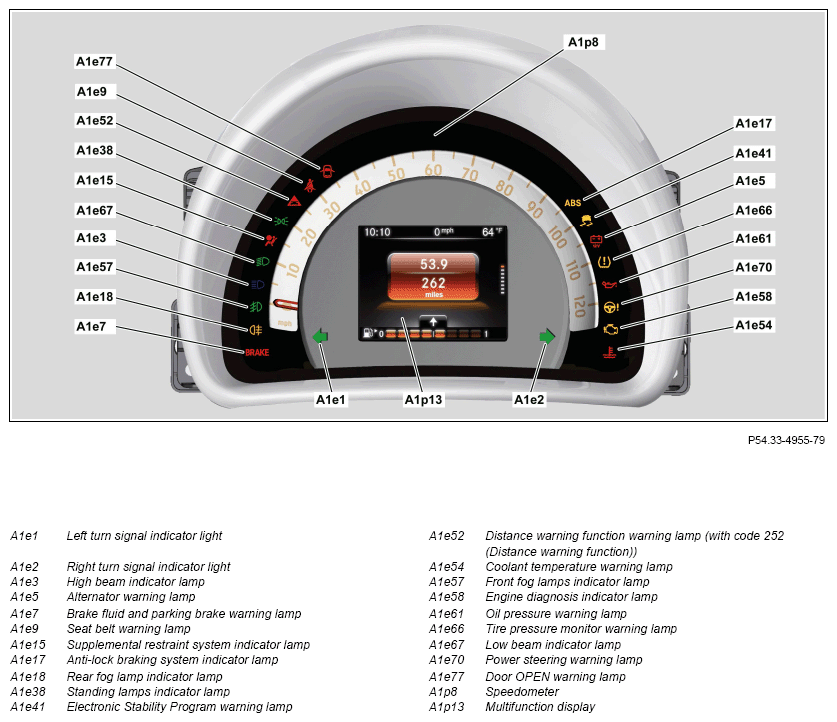

Shown on instrument cluster with code 494 (USA version) and with code K36 (Instrument cluster with color 8.9 cm (3.5") display)
The following components integrated in the instrument cluster are not shown:
- Warning buzzer
- Turn signal light function check, acoustic

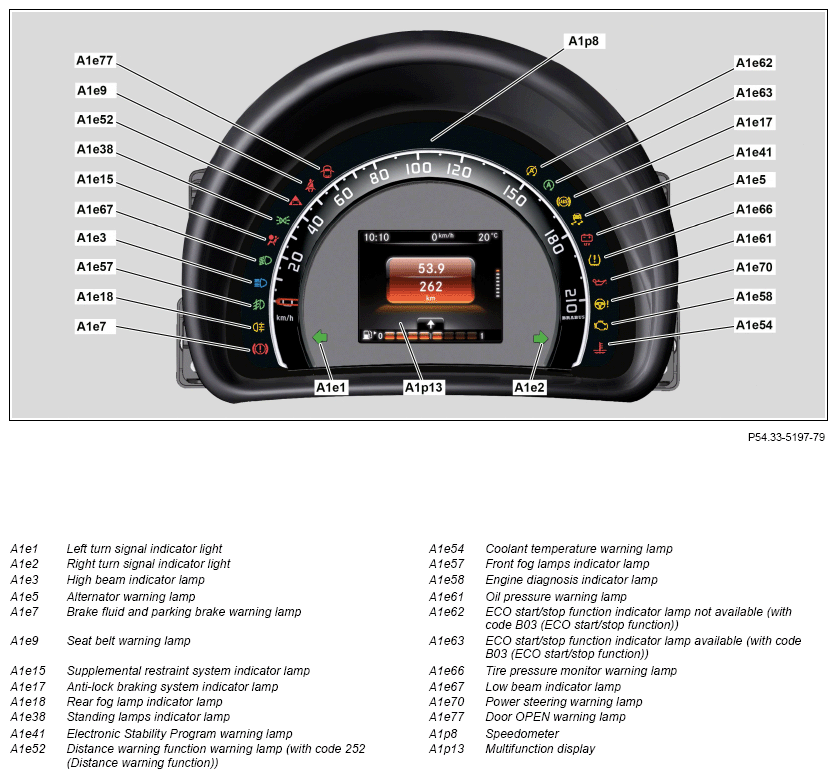

Shown on instrument cluster in model 453.062/362/462 BRABUS with CODE ICBA (BRABUS) and with code K36 (Instrument cluster with color 8.9 cm (3.5") display) without code 494 (USA version)
The following components integrated in the instrument cluster are not shown:
- Warning buzzer
- Turn signal light function check, acoustic

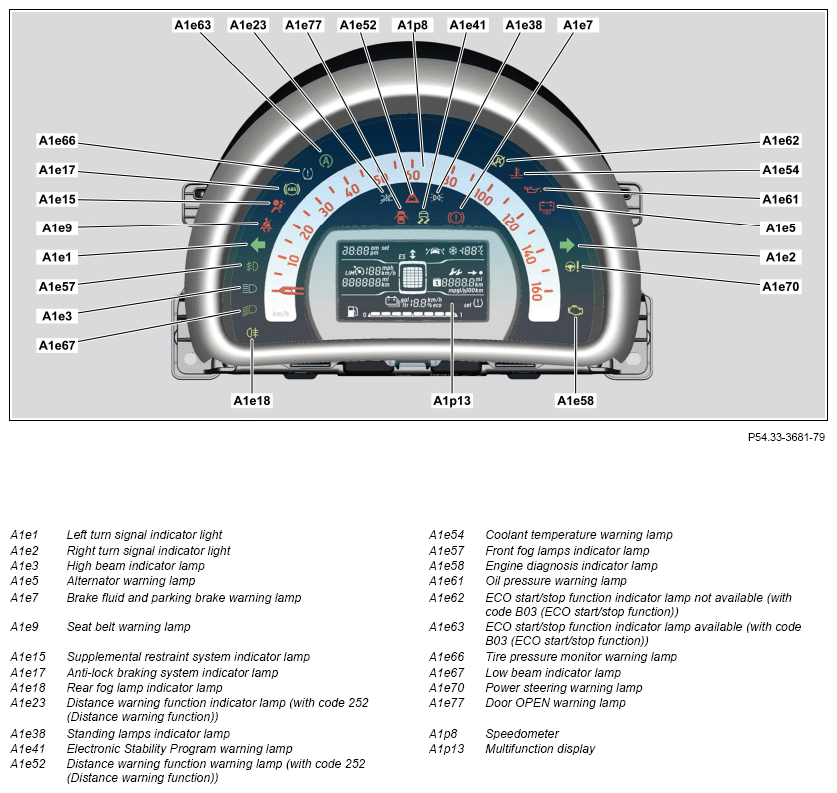

Shown on instrument cluster with code K35 (Instrument cluster with monochrome display) without code 494 (USA version)
The following components integrated in the instrument cluster are not shown:
- Warning buzzer
- Turn signal light function check, acoustic
| Component description for instrument cluster | A1 | GF54.30-P-6000KJ | |
| Component description for multifunction camera | Model 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) with code 238 (Lane keeping assist) with code K35 (Instrument cluster with monochrome display) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A40/11 |
GF54.21-P-3300KJ | |
| Distance warning function controller unit with radar sensor, component description | Model 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) with code 252 (Distance warning function) with code K35 (Instrument cluster with monochrome display) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A89 |
GF30.30-P-3216KJ | |
| Supplemental restraint system control unit, component description | Model 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) with code K35 (Instrument cluster with monochrome display) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) N2/10 |
GF91.60-P-4080KJ | |
| Component description for ME-SFI (ME) control unit | Model 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) with engine 281.910 with code K35 (Instrument cluster with monochrome display) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) N3/10 |
GF07.61-P-6000KJ | |
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Driver-side SAM control unit, component description | N10/11 | GF54.21-P-7012KJ | |
| Component description for electronic selector lever module control unit | Transmission 700.4 in model 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) with code K35 (Instrument cluster with monochrome display) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) N15/5 |
GF27.60-P-5163KJ | |
| Dual clutch transmission control unit, component description | Transmission 700.4 in model 453.0/3/4 with code K35 (Instrument cluster with monochrome display) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) N15/13 |
GF27.60-P-5171KJ | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KJ | |
| Steering angle sensor, component description | N49 | GF42.45-P-5107KJ | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010KJ | |
| Distance warning function gateway, component description | Model 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) with code 252 (Distance warning function) with code K35 (Instrument cluster with monochrome display) with code K36 (Instrument cluster with color 8.9 cm (3.5") display) N93/2 |
GF30.30-P-3217KJ | |
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997KJ |
