Remove/Install Card And Key Storage Module - AR80.57-P-0002SR

MODEL 453.3 (except 453.391)

with CODE P02 (car2go)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and remove key from ignition lock
2	Remove touchscreen (A40/3pi), trim piece with driver side air vent (1) and instrument cluster (A1)		AR54.30-P-6015SR
3	Unscrew bolts (2) and remove mounting console (3)	: Ensure that electrical wiring harnesses are seated correctly.
4	Unclip trim piece (4) and remove	Clip remover	Fig 1
5	Disconnect electrical connection (5)
6	Remove screw/bolts (6)
7	Unclip card and key insert module (7) and remove upward	: Ensure that electrical wiring harnesses are seated correctly. Clip remover	Fig 1
8	Install in the reverse order

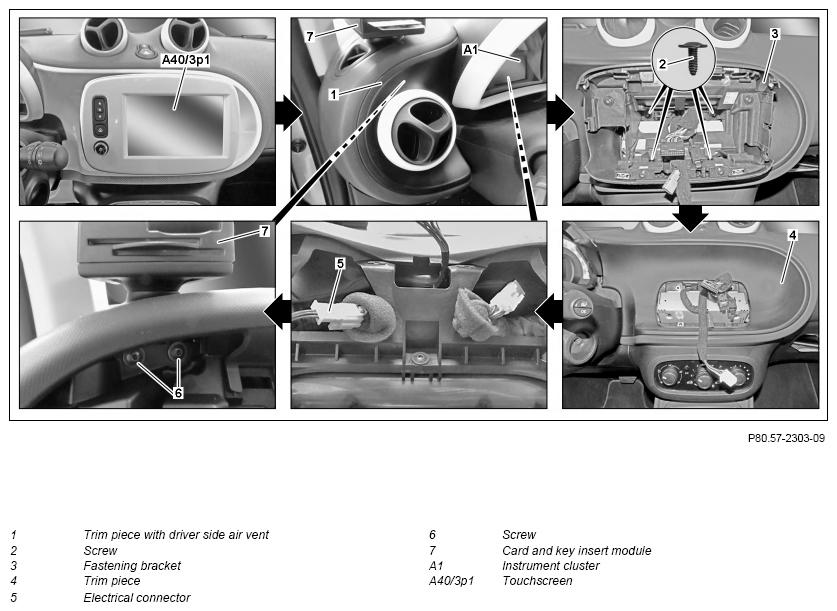

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
