Remove/Install Tie Rod Boot - AR46.40-P-7200SR

MODEL 453

Courtesy of MERCEDES-BENZ USA

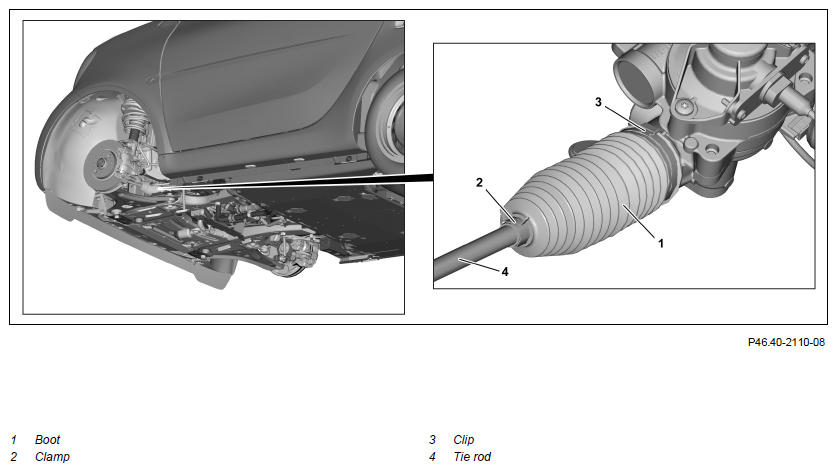

Shown on left side of vehicle

	Remove/install
1	Remove left and right tie rod end		AR46.40-P-0210SR
2	Lower front axle		AR33.10-P-0003SR
3	Remove collar clamp (2)	: Replace clamp (2).
4	Remove clamp (3)	: Replace clamp (3).
5	Slide boot (1) over tie rod (4) and remove	: Replace boot (1).
6	Install in the reverse order
