Remove/Install Radial Shaft Sealing Ring At Input Side - AR27.40-P-3258SR

MODEL 453 (except 453.09/39/49) with TRANSMISSION 700.41

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove guide tube		AR25.20-P-0002SR

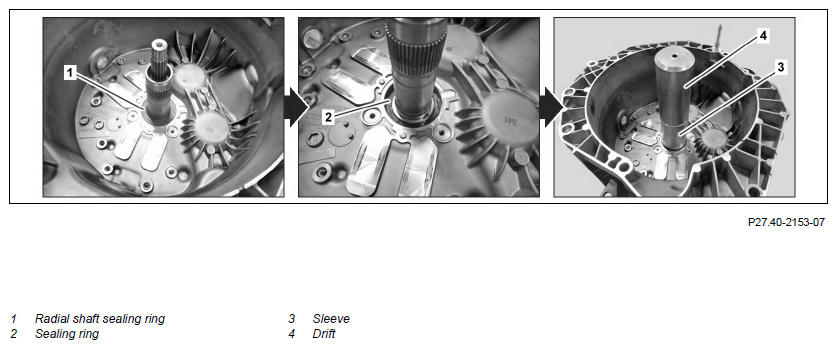

2	Remove radial shaft sealing ring (1)	Carefully remove radial shaft sealing ring (1). Otherwise, the sealing ring (2) of the ball bearing concealed behind it may be damaged.
	Install
3	Flush fit new radial shaft sealing ring (1) with sleeve (3) and drift (4)	Drift	Fig 2
		Sleeve	Fig 1
4	Install guide tube		AR25.20-P-0002SR

Fig 1: Identifying Sleeve (168 589 00 14 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Drift (711 589 07 15 00)

Courtesy of MERCEDES-BENZ USA
