Remove/Install Cable For Parking Shift Lock - AR26.60-P-1000MEV
MODEL 451.391/491
MODEL 453.391/491
MODIFICATION NOTES
| 15.05.2017 | "Remove electric fan", added. | Operation step 3 |

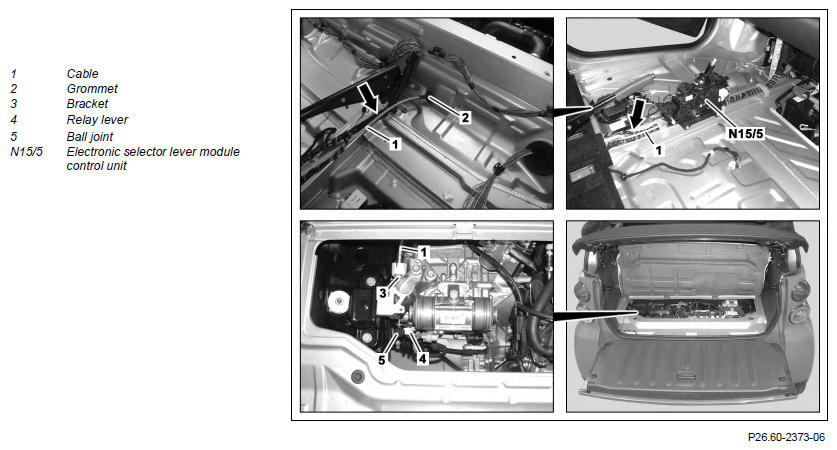

Shown on model 451.491

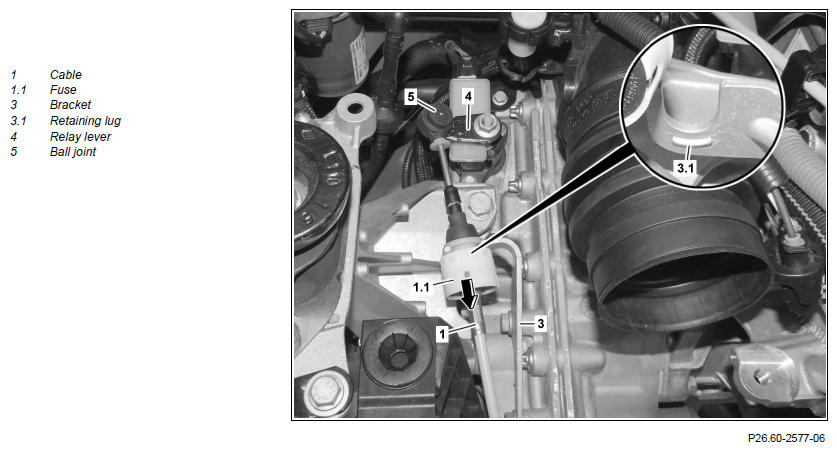

Shown on model 453.391
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on high-voltage battery | Model 451.391/491 | AH54.10-P-0006-01MEV | |
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Note on high-voltage battery | Model 453.391/491 | AH54.10-P-0006-01SRE | |
| Remove/install | |||
| 1 | Remove electronic selector lever module control unit (N15/5) | Model 451.391/491 Model 453.391/491 Model 451.391/491 |
AR26.60-P-0630MCU |
| 2 | Remove both cable ties (arrows) at wire (1) | ||
| 3 | Remove electric fan | Model 453.391/491 with engine 780.997 | AR20.40-P-5000SRE |
| 4 | Unfasten locking clip (1.1) on retaining lug (3.1) and guide wire (1) out of holder (3) | ||
| 5 | Pry ball joint (5) off relay lever (4) | ||
| 6 | Press grommet (2) out of the body towards the engine compartment and remove cable (1) to the rear | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check gearshift system for ease of movement and proper operation |
