Remove/Install Steering Wheel Spoke Covers - AR46.10-P-0105SR

MODEL 453

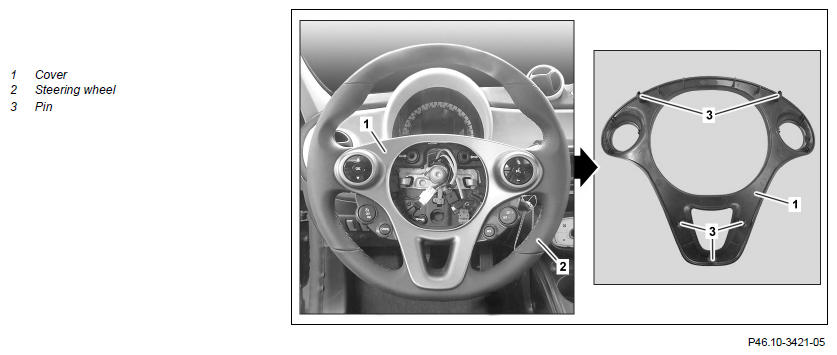

G12094999Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove airbag unit from steering wheel (2)   AR91.60-P-0660SR
2 Unclip cover (1) from steering wheel (2) and remove INSTALLATION IMPORTANT : Check pin (3) on cover (1).
If there are problems:

Replace cover (1).

3 Install in the reverse order
