Remove/Install Electric Rack-And-Pinion Steering - AR46.35-P-0600SR
MODEL 453
MODIFICATION NOTES
| 26.10.2017 | Initial startup of electric steering control unit and reset of learned value, added. | Step 6 |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Evaluating steering gear when repairing accident vehicles | AH46.20-P-9409-01SM | ||
| Remove/install | |||

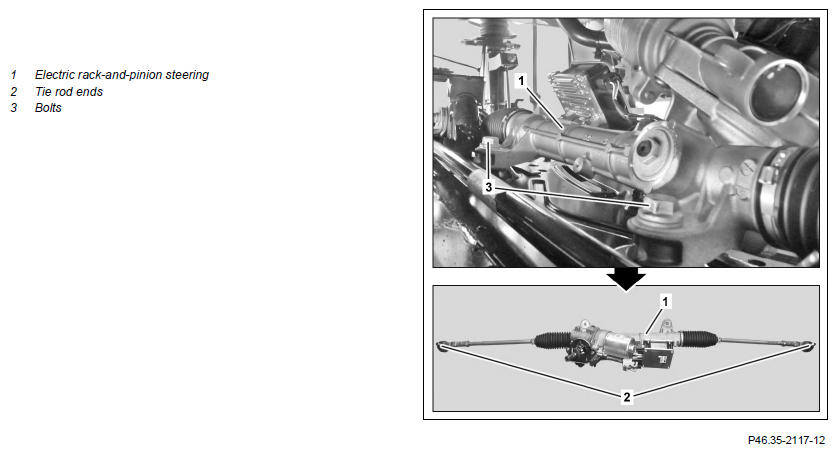

| 1 | Pry off left and right tie rod ends (2) from steering knuckle | AR46.40-P-0210SR | |
| 2 | Lower front axle | AR33.10-P-0003SR | |
| 3 | Remove bolts (3) | *BA46.20-P-1001-01R | |
| 4 | Remove electric rack-and-pinion steering (1) together with an assistant | ||
| 5 | Install in the reverse order | ||
| 6 |
Conduct initial startup of electric steering control unit then reset the learned value for the electric steering in the Electronic Stability Program (ESP) control unit | When replacing the rack-and-pinion steering (1). |
AD00.00-P-2000-06SR |
| 7 |
Read out fault memory with diagnostic device and delete, if necessary | AD00.00-P-2000-06SR |
STEERING GEAR
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA46.20-P-1001-01R | Bolt, electric rack-and-pinion steering to front axle carrier | Nm | 105 |
