Removing And Installing Front Seat Backrest Foam Part - AR91.10-P-1120SR

MODEL 453

Courtesy of MERCEDES-BENZ USA

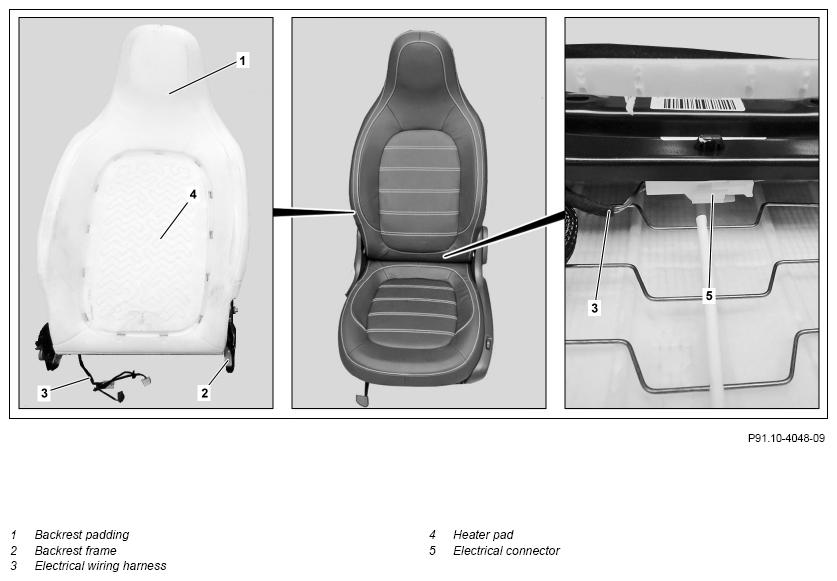

Shown with CODE 873 (Seat heater for driver and front passenger)

	Remove
1	Remove cover for seat backrest on front seat		AR91.10-P-8656SR
2	Disconnect electrical connector (5), and place electrical wiring harness (3) to one side	Model 453 with code 873 (Seat heaters for driver and front passenger)
3	Remove seat backrest padding (1) from backrest frame (2)	Seat backrest padding (1) is glued on in area of integrated head restraint.
	Install
4	Apply cutout for universal bracket on new seat backrest padding (1)	Model 453.0 with code 866 (Pre-installation for iPad cradle) When replacing the backrest padding (1).	AR91.10-P-1120-01SR
5	Apply adhesive, corresponding to old bonding, in area of integrated head restraint	Adhesive Terokal 2444	*BR00.45-Z-1002-02A
6	Position seat backrest padding (1) on backrest frame (2)	Model 453 with code 873 (Seat heaters for driver and front passenger) Ensure that electrical wiring harness (3) is routed correctly.
7	Connect electrical connection (5)	Model 453 with code 873 (Seat heaters for driver and front passenger)
8	Attach cover for seat backrest on front seat		AR91.10-P-8656SR
