Remove/Install Seat Cushion Cover - AR91.10-P-3312SR

MODEL 453

Shown on MODEL 453 with CODE 873 (Seat heater)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove seat cushion from left or right front seat		AR91.10-P-3310SR

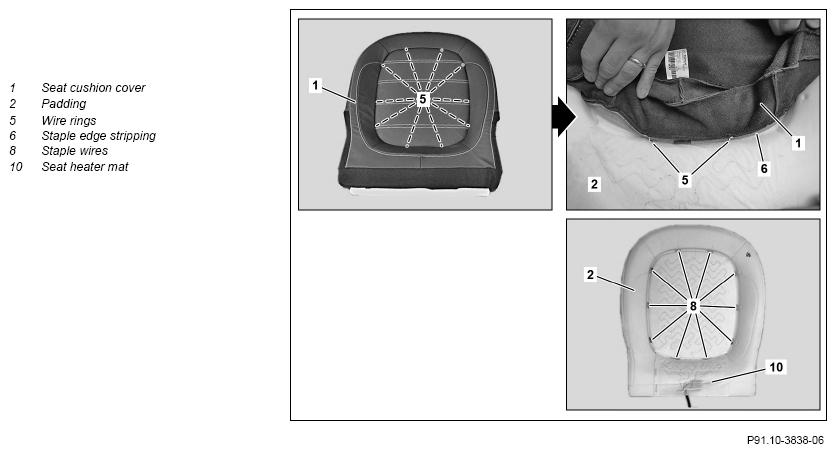

2	Release seat cushion cover (1) from padding (2) until wire rings (5) are accessible
3	Remove wire rings (5) on inside of padding (2) for seat cushion using side cutting pliers	Carefully remove residue of wire rings (5). Otherwise the padding (2) or the seat cushion cover (1) may be damaged.
4	Remove seat cushion cover (1)	MODEL 453 with CODE 873 (Seat heating for driver and front passenger) The seat heater mat (10) is bonded to the padding (2). When replacing the padding (2) or the seat heater mat (10), both parts must be replaced.
	Install
5	Align seat cushion cover (1) over padding (2)	Ensure that seat cushion cover (1) is correctly seated.
6	Fasten staple edge stripping (6) of seat cushion cover (1) with wire rings (5) to the staple wires (8) of padding (2) using a suitable tool starting from inside
7	Slip seat cushion cover (1) over padding (2)
8	Install seat cushion for left or right front seat		AR91.10-P-3310SR
