Remove/Install Seat Belt Guide - AR91.45-P-0500SR
MODEL 453.3/4
with CODE 460 (Canada version)
MODEL 453.3/4
with CODE 494 (US version)

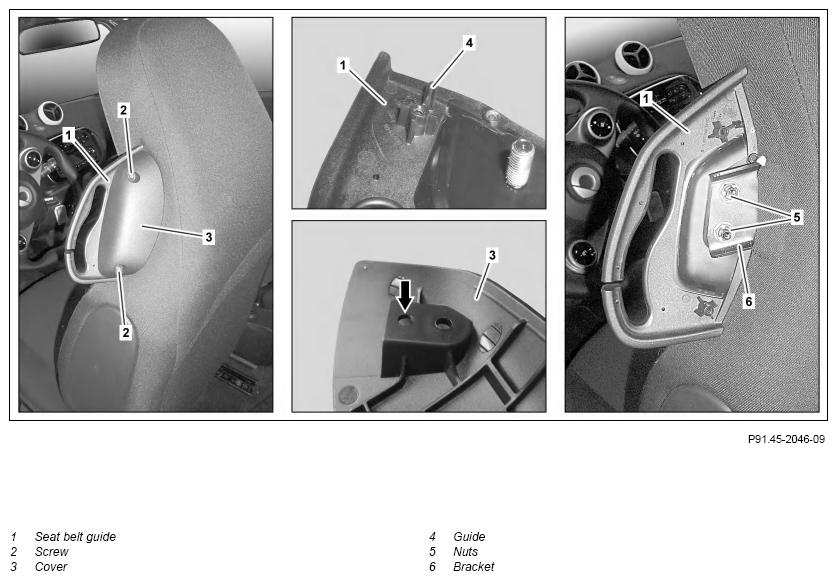

Shown on left front seat
| Remove/install | |||
| 1 | Fold respective seat backrest in forward direction. | ||
| 2 | Unscrew bolts (2) | *BA91.10-P-1009-01K | |
| 3 | Remove cover (3). | The guide (4) on the seat belt guide (1) must retract into the opening (arrow) of the cover (3). |
|
| 4 | Unscrew nuts (5) | *BA91.10-P-1008-01K | |
| 5 | Remove seat belt guide (1) from holder (6). | ||
| 6 | Remove front seat and detach cover of seat backrest far enough until holder (6) on seat backrest frame is accessible. | AR91.10-P-8656SR | |
| 7 | Detach holder (6) from seat backrest frame. | *BA91.10-P-1007-01K | |
| 8 | Install in the reverse order. |
FRONT SEATS
| Number | Designation | Model 453 except code 866 (Pre-installation for iPad cradle) | |
|---|---|---|---|
| BA91.10-P-1007-01K | Nut, holder for seat belt guide to seat backrest | Nm | 6 |
FRONT SEATS
| Number | Designation | Model 453 except code 866 (Pre-installation for iPad cradle) | |
|---|---|---|---|
| BA91.10-P-1008-01K | Nut, seat belt guide to holder | Nm | 6 |
FRONT SEATS
| Number | Designation | Model 453 except code 866 (Pre-installation for iPad cradle) | |
|---|---|---|---|
| BA91.10-P-1009-01K | Bolt, cover to seat belt guide | Nm | 1 |
