Remove/Install ISOFIX Child Seat Attachment - AR91.10-P-0002SR
MODEL 453
| Remove/install | |||

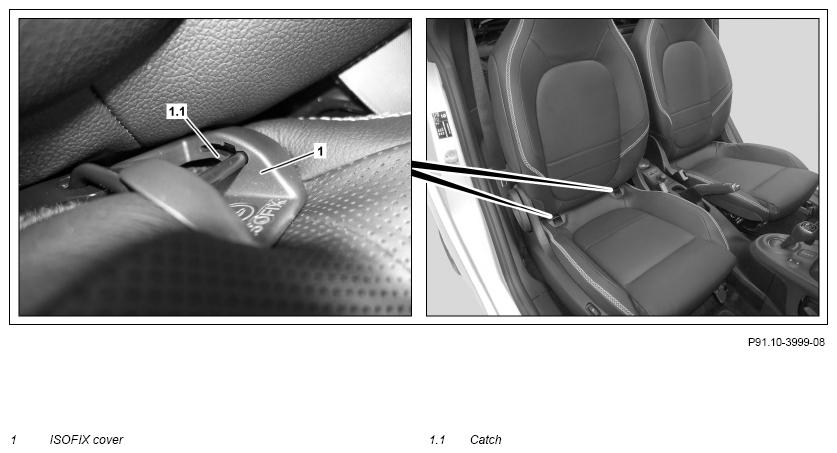

| 1 | Adjust backrest so that ISOFIX covers (1) are exposed | ||
| 2 | In each case press both catches (1.1) upwards and remove ISOFIX covers (1) | ||

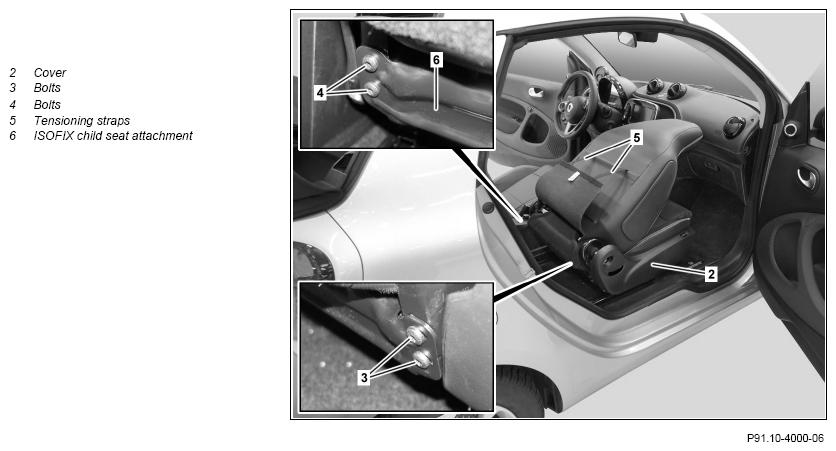

| 3 | Detach panel (2) until screws/bolts (3) are accessible | AR91.10-P-1200SR | |
| 4 | Adjust front seat such that screws/bolts (3, 4) can be removed | ||
| 5 | Detach tensioning straps (5) at seat frame and route upwards with section of cover | ||
| 6 | Remove screws/bolts (3, 4) and remove ISOFIX child seat attachment (6) | *BA91.10-P-1005-01K | |
| 7 | Install in the reverse order |
FRONT SEATS
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA91.10-P-1005-01K | Bolt, ISOFIX child seat attachment to backrest frame | Nm | 11 |
