Remove/Install Front Seat Sidebag Unit - AR91.60-P-0695SR
MODEL 453

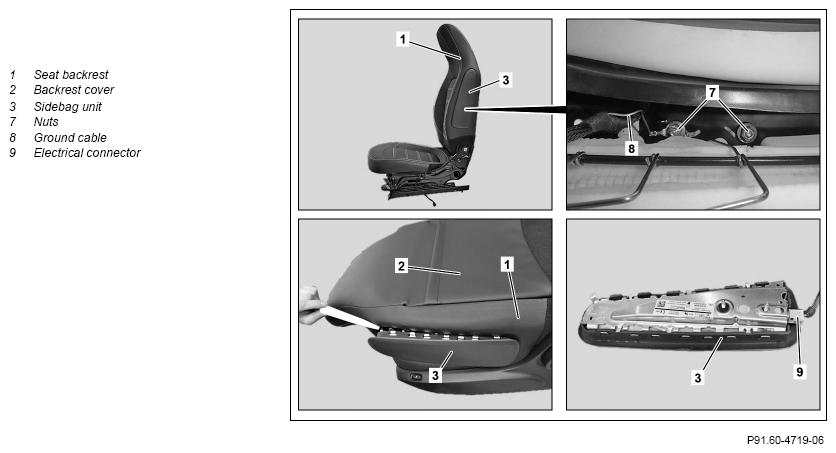

Shown on removed driver seat
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Move front seat and backrest (1) forward | ||
| 2 | Disconnect battery ground line | AR54.10-P-0003SR | |
| 3 | Unhook tabs for backrest cover (2) from backrest frame and under seat cushion | ||
| 4 | Loosen backrest cover (2) until nuts (7) are accessible | ||
| 5 | Unscrew nuts (7) and remove ground line (8) | *BA91.60-P-1007-01C | |
| 6 | Detach sidebag unit (3), as shown, from backrest frame | Otherwise, the cover of the sidebag unit (3) may become damaged. |
Figure |
| 7 | Disconnect Electrical connection (9) | ||
| 8 | Remove sidebag unit (3) | ||
| 9 | Dispose of sidebag unit (3) properly | When replacing sidebag unit (3). | |
| 10 | Install in the reverse order | ||
| Check | |||
| 11 |
Check Supplemental Restraint System (SRS) with diagnostic system | When replacing sidebag unit (3). | AD00.00-P-2000-06SR |
AIRBAG
| Number | Designation | Model 453.0 | Model 453.3/4 | |
|---|---|---|---|---|
| BA91.60-P-1007-01C | Nut, sidebag to backrest | Nm | 7 | 7 |
