Remove/Install Front Seat Frame Covers - AR91.10-P-1200SR
MODEL 453
Shown on MODEL 453 on driver side front seat with CODE 873 (Seat heater) and without CODE S55 (Vertically adjustable driver seat)
Shown on MODEL 453 on driver side front seat without CODE S55 (Vertically adjustable driver seat)

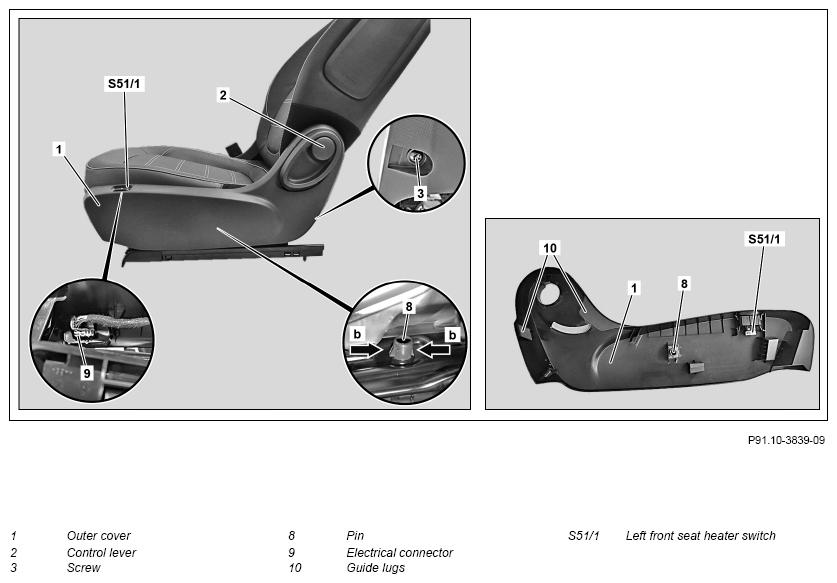

| Remove/instaii outer cover (1) | |||
| 1 | Adjust front seat to foremost position | ||
| 2 | Adjust front seat to the uppermost position | MODEL 453 with CODE S55 (Driver's seat) When working on the driver seat. | |
| 3 | Pry off adjusting lever (2) | Fig 1 | |
| 4 | Unscrew bolt (3) | ||
| 5 | Detach outer cover (1) in the rear area | Otherwise the guide tabs (10) may be damaged. |
|
| 6 | Release catch hook on pin (8) (arrows b) and push pin (8) of outer cover (1) out of guide in seat frame | ||
| 7 | Remove outer cover (1) until the electrical connector (9) of the left front seat heater switch (S51/1) or the right front seat heater switch (S51/2) is accessible | MODEL 453 with CODE 873 (heated seats) | |
| 8 | Disconnect electrical connector (9) | MODEL 453 with CODE 873 (heated seats) | |
| 9 | Remove outer cover (1) | ||
| 10 | Remove left front seat heater switch (S51/1) or right front seat heater switch (S51/2) from outer cover(1) | MODEL 453 with CODE 873 (heated seats) When replacing outer cover (1). |
|
| 11 | Install in the reverse order | ||

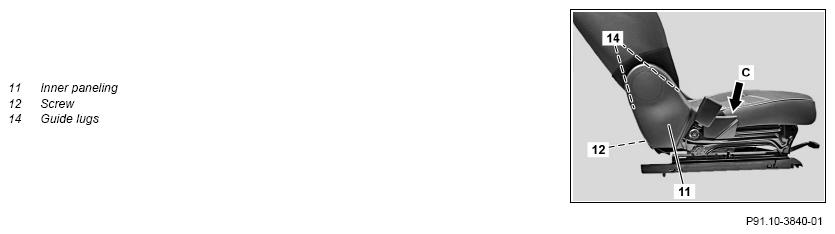

| Remove/install inner cover (11) | |||
| 12 | Adjust front seat to the rearmost position | ||
| 13 | Adjust front seat to the uppermost position | MODEL 453 with CODE S55 (Driver's seat) When working on the driver seat. |
|
| 14 | Unscrew screw/bolt (12) | ||
| 15 | Detach inner cover (11) in the rear area | Otherwise the guide tabs (14) may be damaged. |
|
| 16 | Push inner cover (11) down slightly in front area (arrow C) | ||
| 17 | Remove inner cover (11) from seat frame | ||
| 18 | Install in the reverse order |
