Remove/Install Cover For Backrest At Front Seat - AR91.10-P-8656SR

MODEL 453

Courtesy of MERCEDES-BENZ USA

Shown on model 453.0 with code 866 (Preinstallation for tablet bracket)

Shown on left front seat of model 453.0

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove front seat.		AR91.10-P-1000SR
2	Remove panels from front seat frame.		AR91.10-P-1200SR
3	Remove seat belt guide from holder.	Model 453.3/4 except code 460 (Canada version) except code 494 (US version) if installed due to conversion Model 453.3/4 with code 460 (Canada version) Model 453.3/4 with code 494 (US version) Model 453.3/4 with code 460 (Canada version) Model 453.3/4 with code 494 (US version) The holder of the seat belt guide remains on the seat backrest frame.	AR91.45-P-0500SR

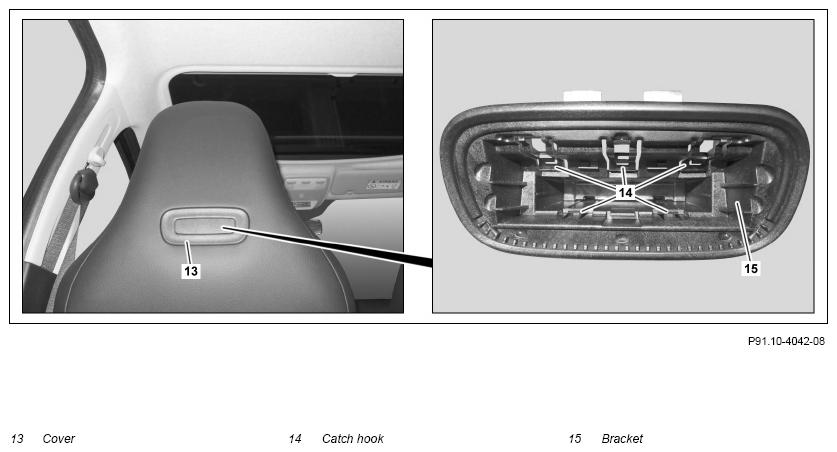

4	Open flap of cover (13), release catch hooks (14) of holder (15) and pull out cover (13).	Model 453.0 with code 866 (Pre-installation for iPad cradle) Mounting wedge	Figure
5	Remove front seat sidebag unit.		AR91.60-P-0695SR

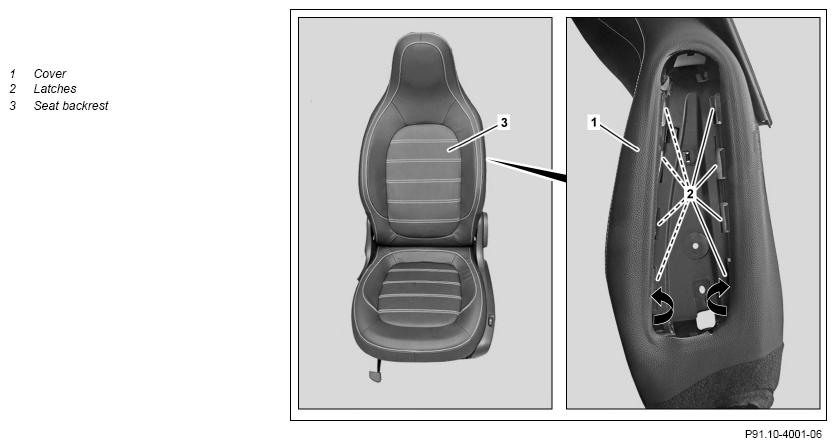

6	Unhook latches (2) in direction of arrow.

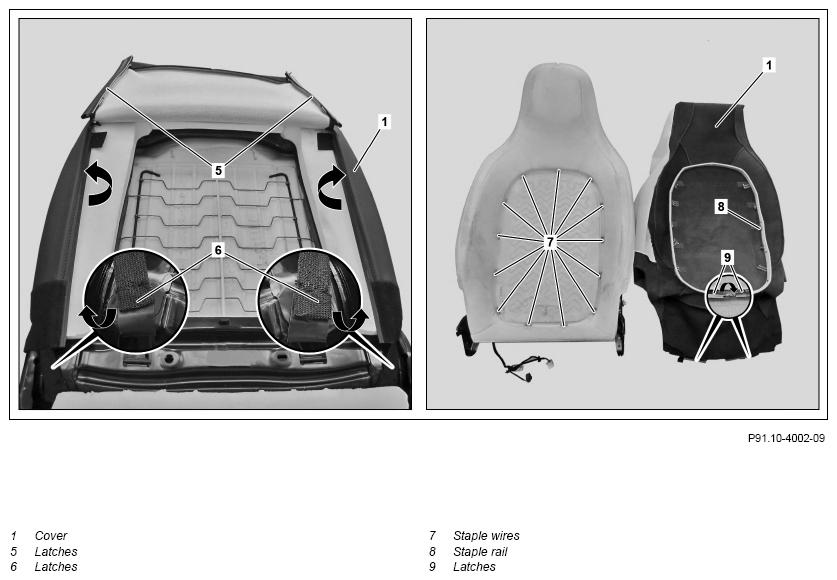

7	Unhook latches (5, 6, 9) in direction of arrow.
8	Release cover (1) at sides of seat backrest padding (12) and turn inside out.
9	Remove wire rings (10) on inner side of seat backrest padding (12) using side cutting pliers (11).	Carefully remove residue of wire rings (10). Otherwise, seat backrest padding (12) or cover (1) can be damaged.
10	Remove cover (1) in upward direction.
	Install
11	Make cutout for holder of seat belt guide in new cover (1).	Model 453.3/4 except code 460 (Canada version) except code 494 (US version) if installed due to conversion Model 453.3/4 with code 460 (Canada version) Model 453.3/4 with code 494 (US version) When replacing cover (1) or if holder is installed. Transfer cutout for holder of seat belt guide from old cover (1).
12	Pull cover (1) over integrated head restraint and align.
13	Align cover (1) on seat backrest padding (12).
14	Hook in new wire rings (10) (arrow A) starting at top of respective staple rail (8).
15	Hook in new wire rings (10) on staple wire (7) of seat backrest padding (12) and close completely with upholstery clip pliers (arrow B).	Padding clip pliers	Fig 2
16	Pull cover (1) over sides of seat backrest padding (12).
17	Hook in latches (5, 6, 9) on cover (1).
18	Hook in latches (2).
19	Install front seat sidebag unit.		AR91.60-P-0695SR
20	Install seat belt guide at holder.	Model 453.3/4 except code 460 (Canada version) except code 494 (US version) if installed due to conversion Model 453.3/4 with code 460 (Canada version) Model 453.3/4 with code 494 (US version) If installed on model 453.3/4 due to conversion.
		Model 453.3/4 with code 460 (Canada version) Model 453.3/4 with code 494 (US version)	AR91.45-P-0500SR
21	Attach panels to front seat frame.		AR91.10-P-1200SR
22	Position cutout for cover (13) on cover (1).	Model 453.0 with code 866 (Pre-installation for iPad cradle) When replacing the cover (1).	AR91.10-P-8656-02SR
23	Insert cover (13) into holder (15).	Model 453.0 with code 866 (Pre-installation for iPad cradle)
		Ensure that it arrest securely.
24	Install front seat.		AR91.10-P-1000SR

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Padding Clip Pliers (454 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
