Remove/Install Airbag, Sidebag And Emergency Tensioning Retractor Control Unit - AR91.60-P-0623SR
MODEL 453
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||

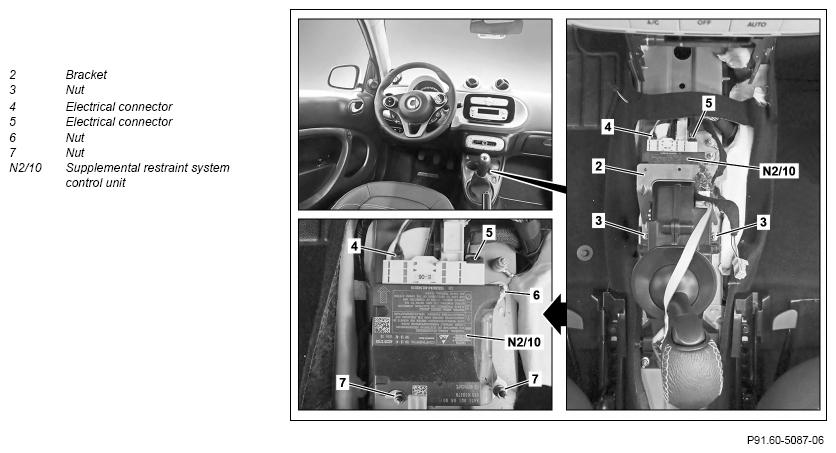

| 1 |
Perform initial startup of supplemental restraint system control unit (N2/10) | When replacing supplemental restraint system control unit (N2/10). | AD00.00-P-2000-06SR |
| 2 | Remove center console | AR68.20-P-2000SR | |
| 3.1 | Remove center mounting console reinforcement | Model 453 with code J58 (Center console with drawer) Model 453 with code J59 (Center armrest) |
AR68.20-P-2340SR |
| 3.2 | Remove front part of center console above the supplemental restraint system control unit (N2/10) | Model 453 with code J56 (Centre console) | |
| 4 | Disconnect battery ground line | AR54.10-P-0003SR | |
| 5 | Unscrew nuts (3) | ||
| 6 | Remove bracket (2) | ||
| 7 | Disconnect electrical connectors (4, 5) and place outside of the working area | ||
| 8 | Unscrew nut (6) | *BA91.60-P-1015-01C | |
| 9 | Loosen nuts (7) until the supplemental restraint system control unit (N2/10) can be swiveled with the threaded pins of the nut (6) | *BA91.60-P-1015-01C | |
| 10 | Remove supplemental restraint system control unit (N2/10) | ||
| 11 | Install in the reverse order | ||
| 12 |
Clear fault memory | When reusing supplemental restraint system control unit (N2/10). | AD00.00-P-2000-06SR |
AIRBAG
| Number | Designation | Model 453.0 | Model 453.3/4 | |
|---|---|---|---|---|
| BA91.60-P-1015-01C | Nut, restraint systems control unit to vehicle floor | Nm | 8 | 8 |
