Remove Fuel Distributor With Injection Valves - AR07.03-P-1450SR
ENGINE 281 in MODEL 453
Shown on engine 281.920
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||

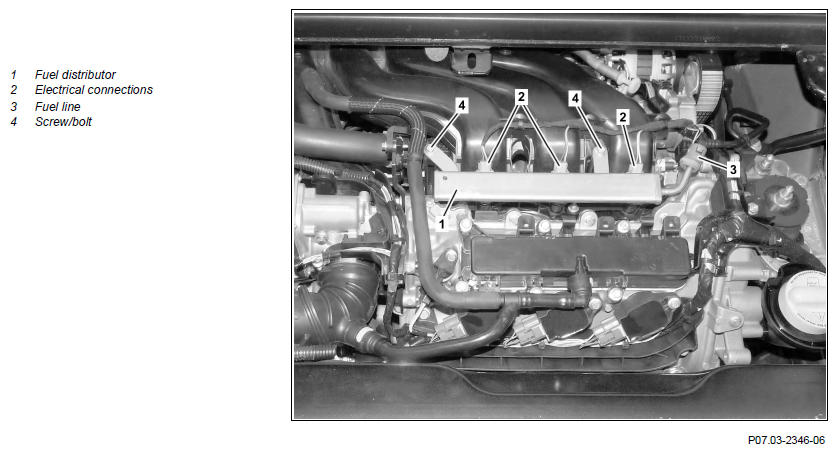

| 1 | Remove covering over engine | ||
| 2 | Separate electrical connections (2) | ||
| 3 | Unlock and detach fuel line (3) on fuel distributor (1) | ||
| 4 | Remove screws/bolts (4) | *BA07.52-P-1002-01D | |
| *BA07.52-P-1001-01D | |||
| 5 | Remove fuel distributor (1) together with fuel injection valves | ||
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform an engine test run and check engine for leaktightness around fuel distributor (1) |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
FUEL DISTRIBUTOR
| Number | Designation | ENGINE 281 | |
|---|---|---|---|
| BA07.52-P-1001-01D | Screw/bolt, fuel distributor to intake manifold | Nm | 10 |
FUEL DISTRIBUTOR
| Number | Designation | ENGINE 281 | |
|---|---|---|---|
| BA07.52-P-1002-01D | Screw/bolt, fuel distributor to charge air distributor | Nm | 10 |
