Unfasten/Fasten Electrical Line For Charging Current - AR15.18-P-0001-01SR

ENGINE 281 in MODEL 453

Release

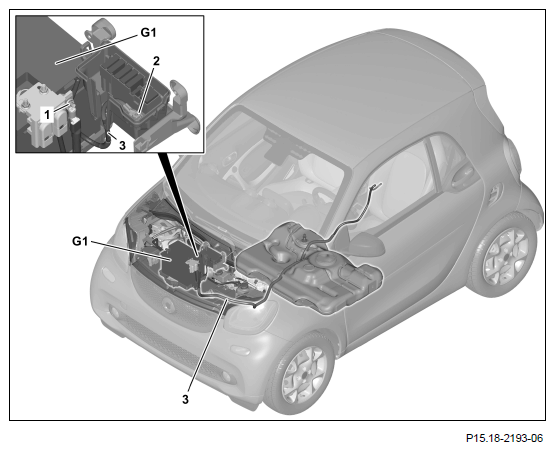

1. Remove cover on positive terminal for on-board electrical system battery (G1).
2. Remove cover above fuse box.
3. Unscrew nut (1).
4. Unscrew nut (2).
5. Take off electrical line for charging current (3).

   Courtesy of MERCEDES-BENZ USA

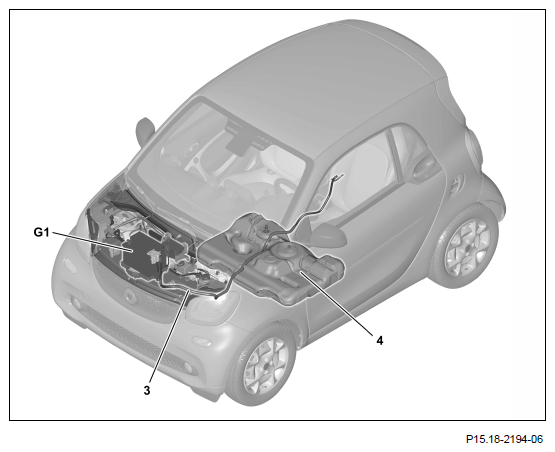

6. Take off electrical line for charging current (3) in front space.
7. Unclip electrical line for charging current (3) on undercarriage and fuel tank (4).
8. Take off electrical line for charging current (3) to the rear.
9. Fix electrical line for charging current (3) onto engine.
10. Fasten in reverse order.

Courtesy of MERCEDES-BENZ USA
