Remove/Install Starter - AR15.30-P-7100SR
ENGINE 281 in MODEL 453
MODIFICATION NOTES
| 23.08.2016 | Electrical line on starter, circuit 50 | Engine 281 | BA15.30-P-1003-01E |
| 09.08.2017 | Electrical line on starter, circuit 30 | Engine 281 | BA15.30-P-1002-01E |

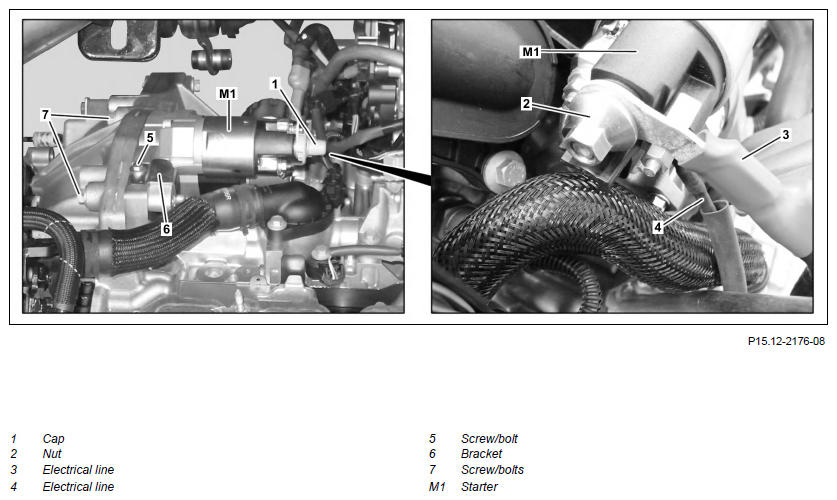

Shown on engine 281.920

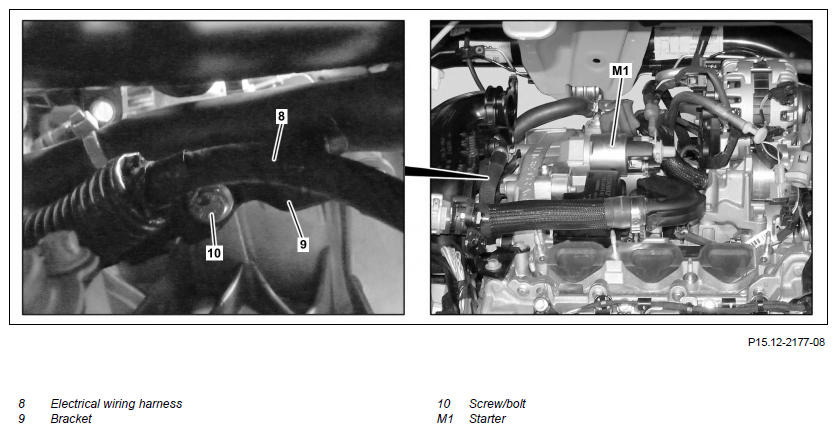

Engine 281.910
| Remove/install | |||
| 1.1 | Remove intake manifold | Engine 281.920 in model 453 | AR09.20-P-1310SR |
| 1.2 | Remove charge air distributor | Engine 281.910 in model 453 | AR09.41-P-1310SR |
| 2 | Remove cap (1) | ||
| 3 | Unscrew nuts (2) and remove electrical line (3) from starter (M1) | *BA15.30-P-1002-01E | |
| 4 | Remove electrical line (4) from starter (M1). | *BA15.30-P-1003-01E | |
| 5 | Remove screw/bolt (5) and remove bracket (6) | ||
| 6 | Unclip electrical wiring harness (8) from bracket (9) | Engine 281.910 in model 453 | |
| 7 | Remove screw/bolt (10) | Engine 281.910 in model 453 | |
| 8 | Remove screw/bolts (7) and remove starter (M1) from transmission | *BA15.30-P-1001-01E | |
| 9 | Install in the reverse order |
STARTER
| Number | Designation | Engine 281 | |
|---|---|---|---|
| BA15.30-P-1001-01E | Bolt, starter to transmission | Nm | 44 |
STARTER
| Number | Designation | Engine 281 | |
|---|---|---|---|
| BA15.30-P-1002-01E | Electrical line on starter, circuit 30 | Nm | 12 |
STARTER
| Number | Designation | Engine 281 | |
|---|---|---|---|
| BA15.30-P-1003-01E | Electrical line on starter, circuit 50 | Nm | 5 |
