Remove/Install Spark Plugs - AR15.12-P-1010SR

ENGINE 281 in MODEL 453

Courtesy of MERCEDES-BENZ USA

	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove ignition coils

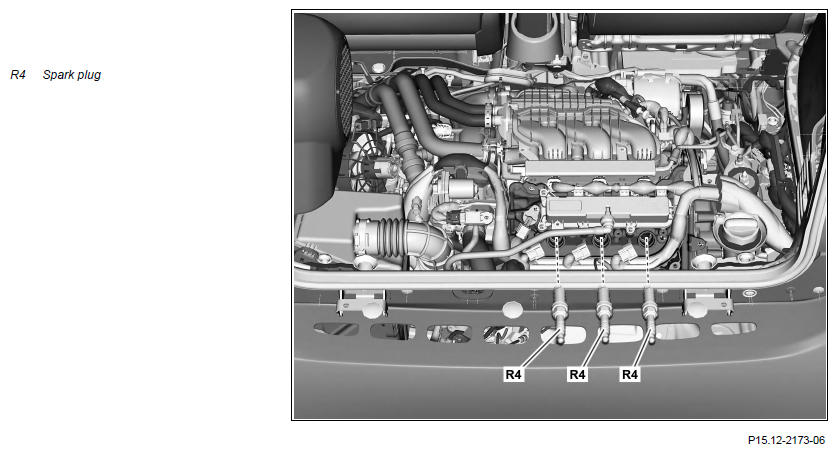

2	Unscrew spark plugs (R4)	Spark plugs	AR15.12-P-2003SR
3	Install in the reverse order		*BA15.10-P-1001-01B

SPARK PLUGS

Number	Designation			ENGINE 281
BA15.10-P-1001-01B	Spark plugs	Initial tightening torque	Nm	24
		Retightening torque	Nm	24
