Remove/Install Ignition Coils - AR15.12-P-2003SR
ENGINE 281 in MODEL 453
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who have electronic implants (e.g. cardiac pacemakers) may not perform any work on the ignition system. | AS15.10-Z-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove covering over engine | ||

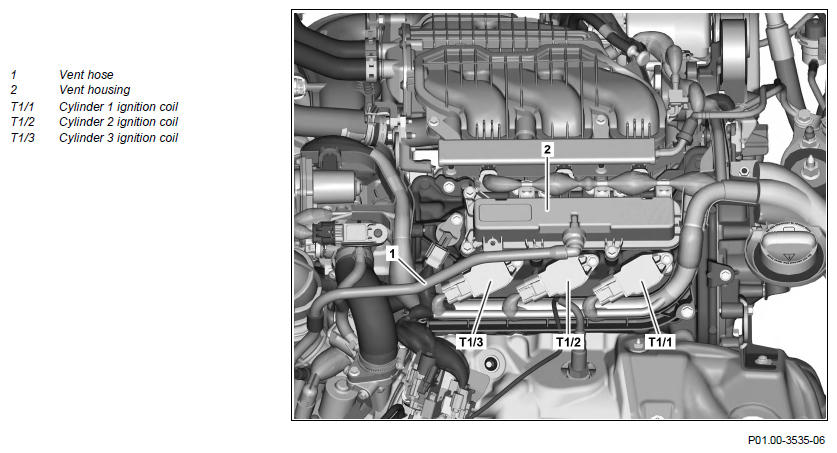

| 3 | Remove bleed hose (1) on ventilation housing (2) and place to one side | ||
| 4 | Release and disconnect electrical connection on cylinder 1 ignition coil (T1/1), cylinder 2 ignition coil (T1/2) and cylinder 3 ignition coil (T1/3) | ||
| 5 | Remove screw/bolts for cylinder 1 ignition coil (T1/1), cylinder 2 ignition coil (T1/2) and cylinder 3 ignition coil (T1/3) | *BA15.12-P-1003-01G | |
| 6 | Remove cylinder 1 ignition coil (T1/1), cylinder 2 ignition coil (T1/2) and cylinder 3 ignition coil (T1/3) from the timing case cover | ||
| 7 | Install in the reverse order |
ELECTRONIC IGNITION WITH VARIABLE CHARACTERISTICS
| Number | Designation | ENGINE 281 | |
|---|---|---|---|
| BA15.12-P-1003-01G | Screw/bolt, ignition coil to cylinder head | Nm | 10 |
