Remove/Install Crankshaft Position Sensor - AR15.12-P-2133SR
ENGINE 281 in MODEL 453

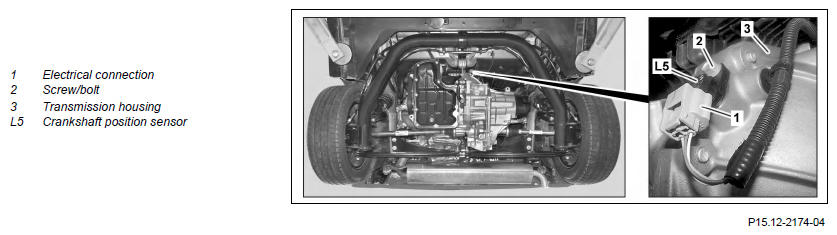

Shown on vehicle with transmission 700.12
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Raise vehicle with vehicle lift | ||
| 2 | Disconnect electrical connection (1) | ||
| 3 | Remove screw/bolt (2) | *BA15.12-P-1005-01G | |
| 4 | Pull crankshaft position sensor (L5) out of the transmission housing (3) | ||
| 5 | Install in the reverse order | ||
| 6 |
Connect diagnostic unit, read out fault memory | When replacing the crankshaft position sensor (L5). | AD00.00-P-2000-06SR |
ELECTRONIC IGNITION WITH VARIABLE CHARACTERISTICS
| Number | Designation | Engine 281 | |
|---|---|---|---|
| BA15.12-P-1005-01G | Screw/bolt, crankshaft position sensor to transmission housing | Nm | 8 |
