Remove/Install Coolant Temperature Sensor - AR15.60-P-2711SR
ENGINE 281 in MODEL 453

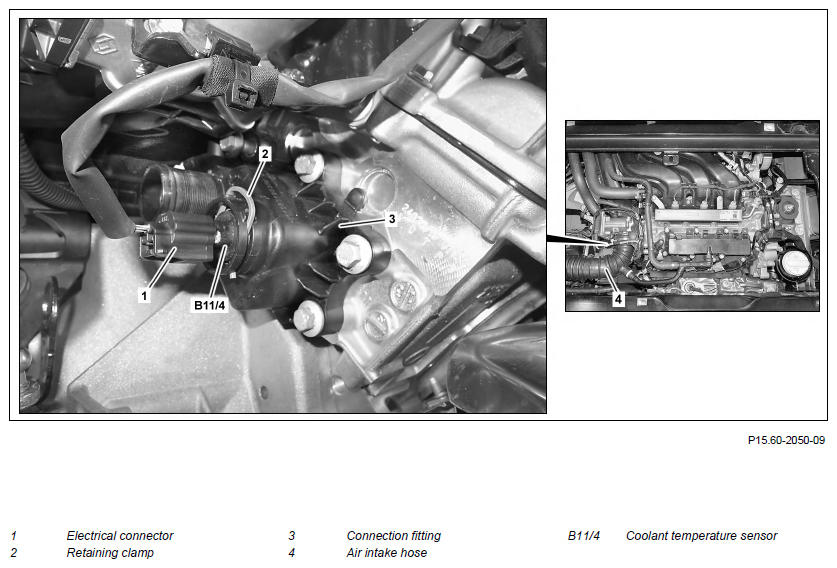

Shown on engine 281.920
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove maintenance flap | ||
| 2 | Screw cap onto expansion reservoir by half a turn, relieve overpressure then unscrew cap | ||
| 3 | Remove covering over engine | ||
| 4 | Remove air intake hose (4) | ||
| 5 | Disconnect electrical connection (1) on coolant temperature sensor (B11/4) | ||
| 6 | Pull out retaining clamp (2) | ||
| 7 | Pull coolant temperature sensor (B11/4) out of the connection fitting (3) | ||
| 8 | Install in the reverse order | ||
| 9 | Pour in coolant and bleed cooling system | AR20.00-P-1142SR | |
| 10 |
Connect diagnostic unit, read out fault memory | When replacing the coolant temperature sensor (B11/4). | AD00.00-P-2000-06SR |
| Check | |||
| 11 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform an engine test run and check engine in the area of the coolant temperature sensor (B11/4) for leaktightness |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
