Remove Mounting Bracket For Front Cross Strut - AR61.10-P-0020-01SRC

MODEL 453.4

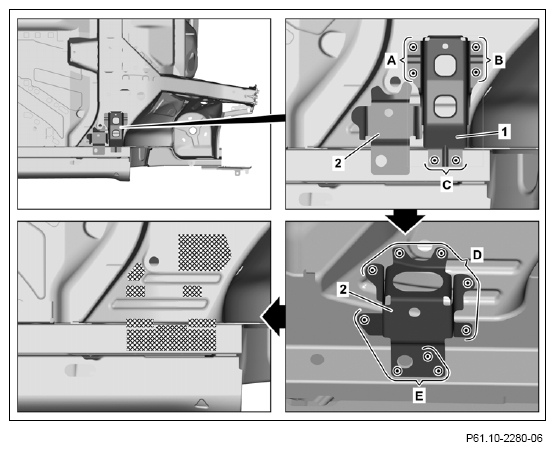

1. Expose spot welds on mounting console (1) and cut out (areas A, B and C).
2. Remove mounting console (1).
3. Expose spot welds on mounting console (2) and cut out (areas D and E).
4. Remove mounting console (2).
5. Sand down mating surfaces to bare metal in cross-hatched areas.
6. Remove grinding dust and drill chips.
