Prepare Mounting Bracket For Front Cross Strut For Installation - AR61.10-P-0020-02SRC

MODEL 453.4

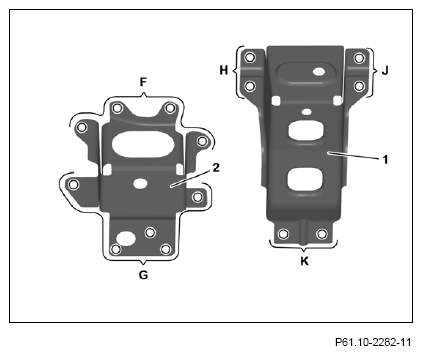

1. Drill holes for spot welds on mounting consoles (1 and 2) (areas F, G, H, J and K).
2. Grind mounting consoles (1 and 2) around holes down to bare metal on both sides (areas F, G, H, J and K).
3. Remove grinding dust.

Courtesy of MERCEDES-BENZ USA
