Install Mounting Bracket For Front Cross Strut - AR61.10-P-0020-03SRC

MODEL 453.4

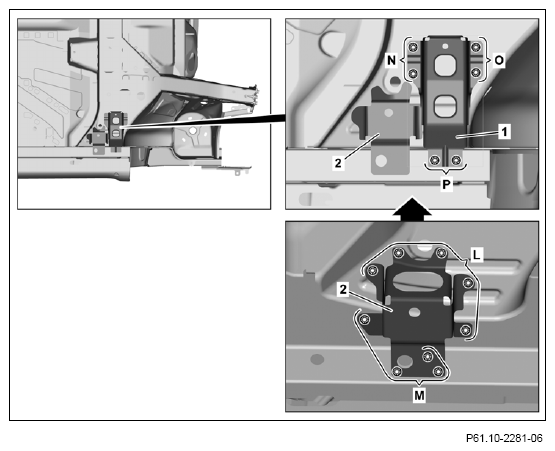

1. Install mounting console (2), fit and fix in place with tack welds (areas L and M).
2. Mounting console (2) (areas L and M).
3. Install mounting console (1), fit and fasten with two tack welds (areas N, O and P).
4. Mounting console (1) (areas N, O and P).
