Remove/Install Vent Pipe For Transmission - AR27.10-P-0006SR

MODEL 453 (except 453.09/39/49) with TRANSMISSION 700.41

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove covering over engine
	Clean
2	Clean area around ventilation pipe (2)	Any ingress of foreign objects into the ventilation pipe must be avoided. Otherwise, the transmission may be damaged.

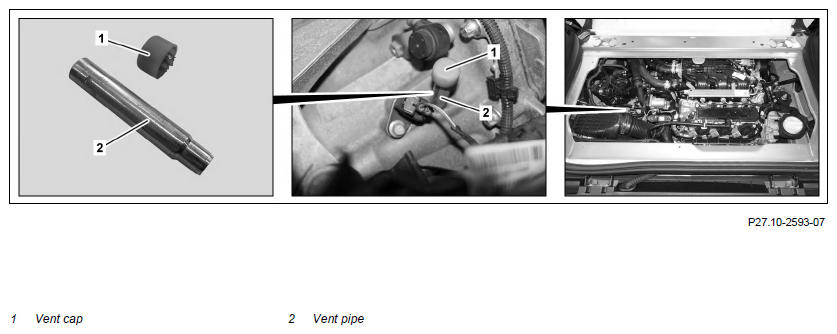

3	Detach vent cap (1)
4	Use suitable pliers to pull out ventilation pipe (2)
5	Install in the reverse order
