Remove/Install Central Clutch Operator - AR26.40-P-0345SR
TRANSMISSION 700.12 in MODEL 453 (except 453.09/39/49)

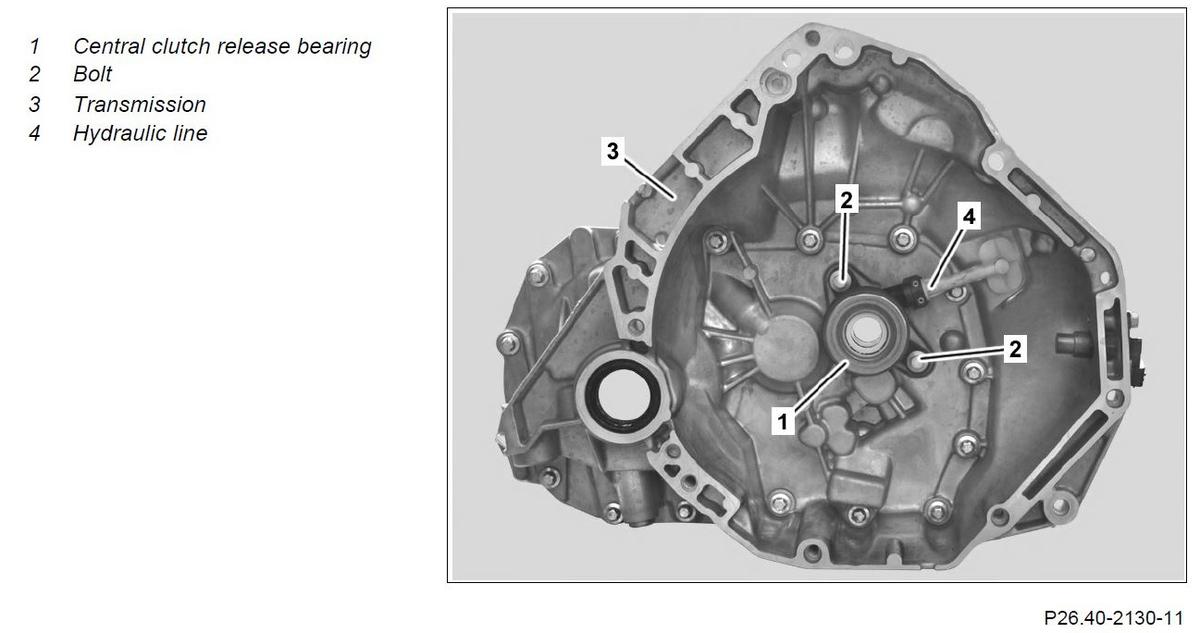

| Remove/install | |||
| 1 | Remove transmission (3) | AR26.10-P-0020SR | |
| 2 | Unscrew screws/bolts (2) | Bolt, central clutch release bearing in coupling housing | *BA26.40-P-1002-01G |
| 3 | Remove central clutch release bearing (1) with hydraulic line (4) from transmission (3) | ||
| 4 | Install in the reverse order |
HOUSING
| Number | Designation | Transmission 700.12 | |
|---|---|---|---|
| BA26.40-P-1002-01G | Bolt, central clutch release bearing in coupling housing | Nm | 25 |
