Remove/Install Operating Unit For Climate Control - AR83.40-P-6348SR
MODEL 453 with CODE I01 (Air conditioning Pius)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove panel at bottom for center instrument panel | AR68.10-P-1498SR | |

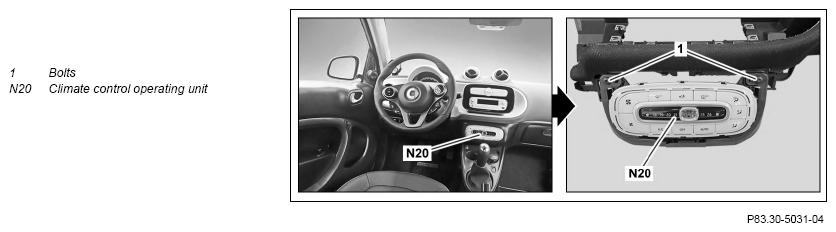

| 2 | Remove bolts (1) | ||
| 3 | Remove climate control operating unit (N20) and disconnect electrical connectors | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Check function of climate control operating unit (N20) |
