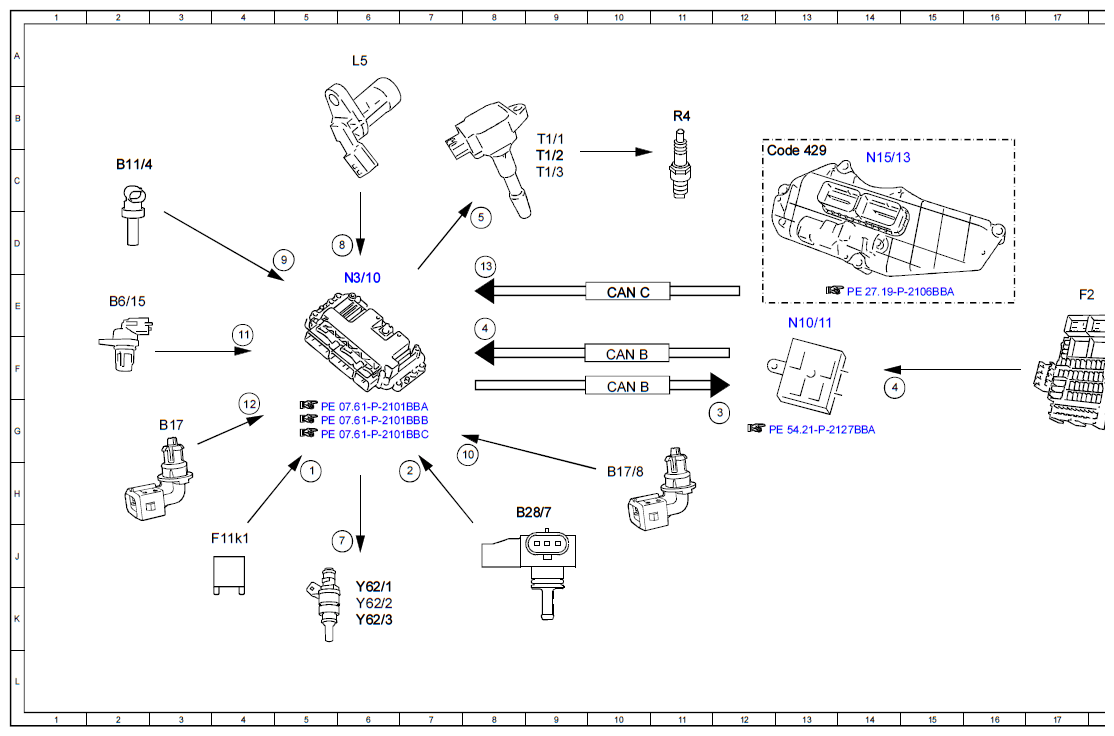

Electrical Function Schematic For Start Phase, Post-Start Phase And Warm-Up Enrichment - PE07.10-P-2707-97BBA
ENGINE 281.910 in MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 5H |
| 10 | Charge air temperature sensor, signal | 8G |
| 11 | Camshaft Hall sensor, signal | 4E |
| 12 | Intake air temperature sensor, signal | 4G |
| 13 | Selector lever position, status | 8D |
| 2 | Engine load, signal | 7H |
| 3 | Engine running, signal | 12G |
| 4 | Circuit 50, status | 8E |
| 4 | Circuit 50, status | 14F |
| 4 | Circuit 50, status | 19F |
| 5 | Ignition coils, actuation | 8D |
| 7 | Injection valves, actuation | 6J |
| 8 | Engine speed, signal | 6D |
| 9 | Coolant temperature sensor, signal | 5D |
| B11/4 | Coolant temperature sensor | 2C |
| B17 | Intake air temperature sensor | 3G |
| B17/8 | Charge air temperature sensor | 10H |
| B28/7 | Pressure sensor downstream of throttle valve | 9H |
| B6/15 | Intake camshaft Hall sensor | 2E |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 10F |
| CAN C | Drive train CAN | 10E |
| Code 429 | twinamic | 12C |
| F11k1 | Engine function circuit 87 relay | 4J |
| F2 | Vehicle interior fuse and relay module | 17E |
| L5 | Crankshaft position sensor | 6A |
| N10/11 | Driver SAM control unit | 13E |
| N15/13 | Double clutch transmission control unit | 14C |
| N3/10 | ME-SFI [ME] control unit | 6E |
| R4 | Spark plugs | 11B |

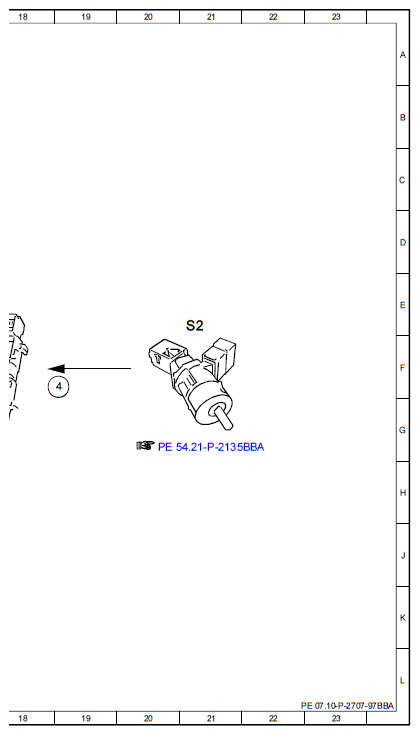

| S2 | Ignition lock | 21E |
| T1/1 | Cylinder 1 ignition coil | 9B |
| T1/2 | Cylinder 2 ignition coil | 9C |
| T1/3 | Cylinder 3 ignition coil | 9C |
| Y62/1 | Cylinder 1 injection valve | 6K |
| Y62/2 | Cylinder 2 injection valve | 6K |
| Y62/3 | Cylinder 3 injection valve | 6K |
